BExCTS110-05 Flare Horn Alarm & Strobe - Telephone Initiated 1-23-011

Product image
Product Image
Product Image

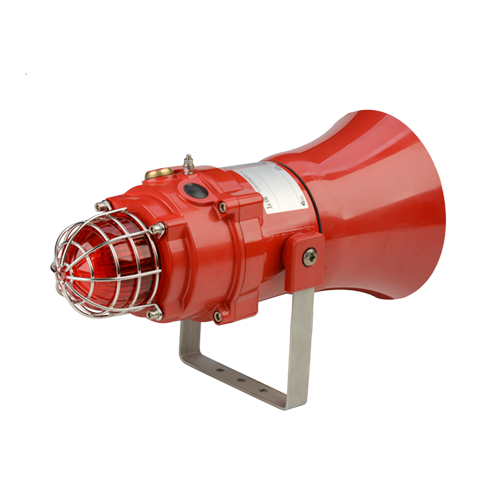

The BExCTS110-05D is a flameproof telephone initiated combined alarm horn sounder and Xenon strobe beacon. Suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
Request a quote for this product
Type
Voltage
Cable entries
Stopping plug/adaptor material
Bracket/Guard material
Product version
Enclosure colour
Lens colour
Part Number:
BExCTS11005
Request Price or enquire about this product
Enquire about
Flare Horn Alarm & Strobe - Telephone Initiated

Description

The BExCTS110-05D produces a loud audible signal and a visual signal, when triggered by a telephone ringing signal and can be used in hazardous areas where potentially flammable atmospheres may be present. Thirty two different sounds can be selected by internal switches, (see tone table on Page 5). The sounder produces output levels in the 110dB(A) range and the beacon produces an output level of 5 joules. The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models contain dual cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Downloads

Datasheet Datasheet.pdf
Installation Manual D210-01-681-IS_Issue_3_BExCTS110-05.pdf
Installation Manual - Russian D210-00-681-IS-RUS_Issue_3_BExCTS110-05D.pdf
INMETRO Installation Manual IS2446-75-IEx_Issue_A.pdf
IECEx certificate IECEx_KEM_10.0025X_Issue_4_BExCS.pdf
ATEX certificate KEMA_01ATEX2223X_Issue_6_BExCS.pdf
UKCA Certificate UL22UKEX2639X_Rev_0_BExCS.pdf
INMETRO certificate IEx16.0034X_R2_BExCS.pdf
Ex EAC TR CU 012/2011 Certificate RU_-GB.65..01252_21.pdf
Declaration of Conformity DC-005_Issue_P_BExCS.pdf
Declaration of Conformity UKCA DC-106_Issue_A_BExCS_UKCA.pdf
2D drawing (PDF) D210-05-601_Issue_2.pdf
2D drawing (DWG) D210-05-601_Issue_2.dwg
3D drawing (STEP) D210-05-601-3D_Issue_A.STEP
Wiring Schematic DC voltage D210-06-681_Issue_1_BExCTS110-05D_DC.pdf
Wiring Schematic AC voltage D210-06-685_Issue_1_BExCTS110-05D_AC.pdf
Nameplate Drawing D210-09-681_Issue_1_BExCTS110-05D-P.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf
Pole Mount & Sun Shade Drawing D217-05-601_Issue_2__BExCS110_F_.pdf

Features

  • The sounder and beacon can be set individually to either run continuously or pulsed at the cadence of the ringing tone.
  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Xenon tube mechanically secured against shock & vibration
  • Very large termination area.
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 120 candela effective light intensity.
  • UV stable PC, field replaceable, colour lens filters.

Specification

Sounder/Horn:
Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
Volume control: Max. 110dB(A); Min. 72dB(A) – Tone 2
Effective range: 100m/328ft @ 1KHz
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Eff. Intensity: 250 cd – calculated from energy (J)
Peak Candela: 39,463 cd* – measured ref. to I.E.S.
Eff. Intensity: 120 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life : Emissions are reduced to 70% after 5 million flashes
General:
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free
LM6 Aluminium
Enclosure finish: Chromate & powder coated
Horn material: High impact UL94 V0 & 5VA FR ABS (Red)
Cable entries: Dual M20 ISO (one stopping plug included)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
MTBF AC: 66.56 years / 583,091 hours – MIL217
Weight: DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs
SPL data +/-3dB(A), Candela with clear lens – at optimum voltage

Current Consumption

Alarm Sounder Xenon Beacon
Version: Voltage: Current: Voltage: Current:
12V dc +/-25% 195mA 10-14V 750mA
24V dc +/-25% 265mA 20-28V 300mA
48V dc +/-25% 130mA 42-54V 180mA
115V ac 50/60Hz +/-10% 110mA+/-10% 140mA
230V ac 50/60Hz +/-10% 56mA+/-10% 55mA

Part Codes

Part Code: Identifier: Description:
Product type: BExCTS11005 Explosion proof Telephone Initiated Alarm Horn Sounder & 5J Xenon Beacon
Type: DPF Ex d, UV stable PC Colour Lens, Flare Horn
Voltage: DC012
DC024
DC048
AC115
AC230
12V dc
24V dc
48V dc
115V ac
240V ac
Cable entries:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Stopping plug/
adaptor material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/Guard matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag
Product version: [v] A1 Default – IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: [x] R
S
Red
Special – contact E2S
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • IECEx Certificate: KEM 10.0025X
  • ATEX Certificate: KEMA 01ATEX2223X
  • TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
  • INMETRO certificate: 16-IEx-0034
  • UKCA certificate: UL22UKEX2639X

Coding

  • II 2G Ex db IIB T5 Gb Ta. -50°C to +40°C
  • II 2G Ex db IIB T4 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T110°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T125°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor

Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93

Tone Table

Stage 1 WAV file Frequency Description.
T 1 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV Continuous 1000Hz Toxic Gas Alarm
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV Alternating 800/1000Hz at 0.25s intervals
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV Slow Whoop 500/1200Hz at 0.3Hz with 0.5s gap repeated
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV Sweeping 800/1000 at 1Hz
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV Continuous at 2400Hz
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV Sweeping 2400/2900Hz at 7Hz
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV Sweeping 2400/2900Hz at 1Hz
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV Siren 500/1200/500Hz at 0.3Hz
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV Sawtooth 1200/500Hz at 1Hz
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV Alternating 2400/2900Hz at 2Hz
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV Intermittent 1000Hz at 0.5Hz General alarm
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV Alternating 800/1000Hz at 0.875Hz
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV Intermittent 2400Hz at 1Hz
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV Intermittent 800Hz 0.25s on 1s off
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV Continuous at 800Hz
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV Intermittent 660Hz 150mS on, 150mS off
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV Alternating 544Hz (100mS)/440Hz(400mS)
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV Intermittent 660Hz 1.8s on, 1.8s off
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1400Hz to 1600Hz sweep up over 1s -1600Hz to 1400Hz sweep down over 0.5s
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV Continuous 660Hz
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV Alternating 554/440Hz at 1Hz
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV Intermittent 554Hz at 0.875Hz
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz pulsing at 2Hz
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV Sweeping 800/1000Hz at 50Hz
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV Sweeping 2400/2900Hz at 50Hz
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Simulated bell sound
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV Continuous 440Hz
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV Sweeping 800/1000Hz at 7Hz
T 30 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz repeating 0.625s on, 0.625s off Australian alert signal
T 31 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz at 1 Hz Prepare to Abandon Platform
T 32 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV Sweeping 500/1200Hz 3.75s on, 0.25s off 15Hz
Country specific or custom tone configurations and alarm frequencies are available upon request.
