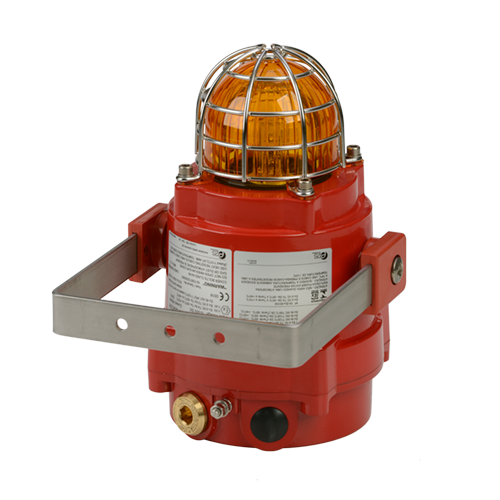

BExBGL2 Explosion Proof L.E.D. Status Light & Beacon 1-21-101

Product image
Product Image
Product Image
The flameproof BExBGL2 L.E.D., 160 candela multi-function beacon is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards. SIL1 compliant.
Request a quote for this product
Type
Voltage
Cable Entry Type
Adaptor/Stopping plug material
Bracket & Guard
Version
Enclosure Color
Lens Color
Part Number:
BExBGL2
Request Price or enquire about this product
Enquire about
Explosion Proof L.E.D. Status Light & Beacon

Description

The BExBGL2 explosion proof Ex d LED status light & beacon utilises an array of high power Cree® LED’s, orientated to optimise visibility in any direction.
The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signaled from one device. The UV stable colour filter enhances the light output and is field replaceable.

Downloads

Datasheet Datasheet.pdf
Ex d & Ex tD Gas & Dust installation D210-00-401-IS_Issue_2__BExBGL2D_.pdf
IECEx certificate IECEx_KEM_10.0002X_Issue_4_BExBG_Ex_d.pdf
ATEX certificate KEMA_00ATEX2006X_Issue_6_BExBG_Ex_d.pdf
Russian Ex certificate __RU_C_GB.71.B.00109.pdf
Russian Maritime register RMRS_E2S_Ex_14.02757.315___30.06.2019.pdf
Declaration of Conformity DC-004_Issue_J_BExBG.pdf
2D drawing (PDF) SK0118_Issue_C.pdf
2D drawing (DWG) SK0118_Issue_C.dwg
3D drawing (IGS) SK0118-3D_Issue_B.IGS
3D drawing (STEP) SK0118-3D_Issue_B.STEP
Pipe Mount Drawing (PDF) D217-05-201_Issue_C_BExBG.pdf

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Ingress protection IP66/67
  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady On modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens colour filter
  • Stainless steel fixings
  • Dual cable entries
  • Duplicate cable terminations
    (in & out for daisy-chain installations)
  • Ratchet adjustable stainless steel ‘U’ bracket.

Specification

Source: Array of 4 x High Power Cree® LED’s
Modes: 1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
Eff. Intensity cd: 87 cd – High Power Steady
Eff. Intensity cd: 160 cd – 1Hz flash
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 24V dc (18-54V dc)
Voltages AC: 115V ac; 230V ac
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: ­­­RAL3000 Red
(others available on request)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
LED life: 60,000 hours
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: DC:2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs
*All candela data is representative of performance with clear lens at optimum voltage.
Example part code: BExBGL2DPAC230 [e][m][s][v][x]/[y]
BExBGL2DPAC230AB1A1R/R
BExBGL2 Ex d LED Beacon, 230V ac,
2 x M20 entries, Brass stopping plugs,
A2 304 SS dome guard, IECEx & ATEX approved,
Red enclosure, Red lens

Current Consumption

Version: Voltage: Steady High Power
Current:
Steady Low Power
Current:
Flashing 1Hz
Current:
24V dc 18-54V dc 240mA 134mA 110mA
115V ac 103.5-126.5V ac 50/60Hz 95mA 78mA 90mA
230V ac 207-253V ac 50/60Hz 48mA 37mA 45mA

Part Codes

Version: Part code:
Product: BExBGL2 LED Multi-function Beacon
Type: DP Ex d, UV stable PC lens coloured filter
Voltage: DC024
AC115
AC230
18-54V dc
103.5-126.5V ac
207-253V ac
Cable Entry Type:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/guard matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag
Product version: [v] A1 IECEx & ATEX Group II 2G/D Zone 1, 2, 21 & 22 – SIL 1
Enclosure colour: [x] R
S
Red RAL3000
Special contact E2S
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Accessories: SP65-0001-A2
SP65-0001-A4
SP65-0003-A2
SP65-0003-A4
Pole Mount Bracket Kit 2" St/St A2 (304)
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A2 (304)
Sunshade – St/St A4 (316)

Approvals

  • IECEx KEM 10.0002X
    IEC 60079-0 : 2011
    IEC 60079-1 : 2007-4
    IEC 60079-31 : 2013
  • ATEX KEMA 00ATEX2006X
    EN 60079-0 : 2012 + A11
    EN 60079-1 : 2007
    EN 60079-31 : 2014
  • SIL 1 compliant to IEC 61508 (2010)
  • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109

Assemblies

Assemblies:
The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.

Coding

  • II 2G Ex d IIC T6 Gb Ta. -50°C to +60°C
  • II 2G Ex d IIC T5 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T60°C Db Ta. -50°C to +40°C
  • II 2D Ex tb IIIC T75°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T90°C Db Ta. -50°C to +70°C

Multi-function patterns

Stage 1:
[On board]
Stage 2:
[Remote activation]
Stage 3:
[Remote activation]
Steady High Power Flashing 1Hz Triple Strike
Steady Low Power Flashing 1Hz Triple Strike
Flashing 1Hz 2x Flash 2Hz Triple Strike
Flashing 1.5Hz Flashing 2Hz Double Strike
Flashing 2Hz Triple Strike Triple Strike
Double Strike Steady High Power Triple Strike
Triple Strike Flashing 2Hz Double Strike
Note: Remote second and third stage on DC units only
