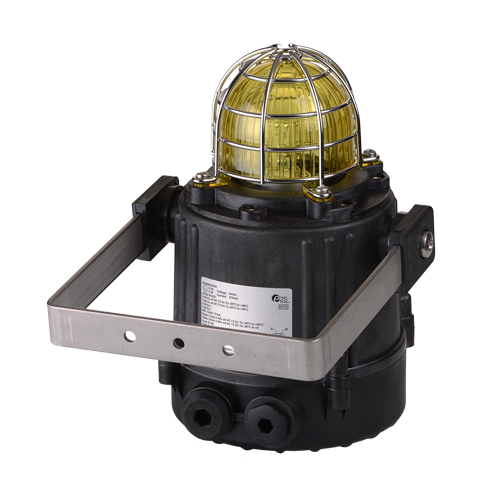

E2xBL2 Multi-function LED Beacon & Status Light 1-31-030

Product image
Product Image
Product Image
The hazardous location E2xBL2 LED beacon and status light is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
Request a quote for this product
Voltage
Cable Entry Type
Stopping plug/adaptor material
Bracket & Guard
Version
Enclosure Color
Lens Color
Part Number:
E2xBL2
Request Price or enquire about this product
Enquire about
Multi-function LED Beacon & Status Light

Description

The hazardous area E2xBL2 LED status light & beacon utilises an array of high power Cree® LED’s, orientated to optimise visibility in any direction.
The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device.
The UV stable colour filter enhances the light output and is field replaceable.

Downloads

Datasheet Datasheet.pdf
Installation Manual D209-01-401-IS_Issue_3__E2xBL2_.pdf
IECEx certificate IECEx_ULD_14.0012X_Issue_2_E2x.pdf
ATEX certificate DEMKO_06ATEX_0421554X_Rev_2_E2x.pdf
UL certificate of compliance UL_CoC_-_20060224-E245313_Vol.1_Sec.2_E2xB.pdf
UKCA Certificate UL21UKEX2135X_Rev._0_E2x.pdf
Russian Ex certificate C_RU_C-GB.71..00273_20.pdf
Declaration of Conformity DC-062_Issue_I_E2x.pdf
Declaration of Conformity UKCA DC-103_Issue_A_E2x_UKCA.pdf
2D drawing (PDF) D209-05-201_Issue_2.pdf
2D drawing (DWG) D209-05-201_Issue_2.dwg
3D drawing (STEP) D209-05-201-3D_Issue_1.STEP
Wiring Schematic D209-06-401_Issue_B.pdf
Nameplate Drawing D209-09-401_Issue_2.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf

Features

  • Very large termination area.
  • Ingress protection IP66/67
  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady On modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens colour filter
  • Stainless steel fixings
  • Dual cable entries
  • Duplicate cable terminations (in & out for daisy-chain installations)
  • Ratchet adjustable stainless steel ‘U’ bracket.

Specification

Source: Array of 4 x High Power Cree® LED’s
Modes: 1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
Eff. Intensity cd: 87 cd – High Power Steady
Eff. Intensity cd: 160 cd – 1Hz flash
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 24V dc (18-54V dc)
Voltages AC: 115V ac; 230V ac
Ingress protection: IP rating per EN60079-0:IP64
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/13
Enclosure material: UL94V0 GRP (PPS)
Lens material: Borosilicate glass dome with PC prismatic lens cover.
Guard: Stainless Steel dome guard as standard
Cable entries: Dual M20x1.5 or 1/2"NPT
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included
EOL can be factory fitted
LED life: 60,000 hours
Operating temp: -20 to +55°C [-4° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 1.48kg/3.25Ibs
* All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: Steady High Power: Steady Low Power: Flashing 1Hz:
24Vdc 18-54Vdc 240mA 134mA 110mA
115Vac 50/60Hz +/-10% 95mA 78mA 90mA
230Vac 50/60Hz +/-10% 48mA 37mA 45mA

Part Codes

Part Code: Ident.: Description:
Product type: E2xBL2 LED Beacon/Status Light
Voltage: AC115
AC230
DC024
115V ac 50/60Hz
230V ac 50/60Hz
24V dc (18-54Vdc)
Cable entries: [e] A
B
C
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: [m] N Nylon
Bracket & Guard & tag: [s] 1
2
3
4
304 A2 Stainless Steel
316 A4 Stainless Steel
304 A2 Stainless Steel & Equip. Tag
316 A4 Stainless Steel & Equip. Tag
Version: [v] A1 UL, cULs, IECEx & ATEX
Enclosure: [x] B Black
Lens colour: [y] A, B, C
G, M, R, Y
Amber, Blue, Clear
Green, Magenta, Red, Yellow
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • ATEX certificate: DEMKO 06 ATEX 0421554X
  • IECEx certficate: IECEx ULD 14.0012X
  • UL/cUL File ref: E245313
  • Ex EAC certified: EAC RU C-GB.AA71.B.00273/20

Coding

  • ATEX / IECEx certification
    II 3G Ex ec IIC T4 Gc Ta -20°C to +55°C
    II 3D Ex tc IIIC T85°C Dc Ta -20°C to +55°C
  • NEC Class / Zone ratings US
    Class I Zone 2 AEx eb IIC T4 Gc Ta -20°C to +55°C
    Zone 22 AEx tc IIIC T85°C Dc Ta -20°C to +55°C
  • CEC Class / Zone ratings Canada
    Class I Zone 2 Ex ec IIC T4 Gc X Ta -20°C to +55°C
    Class I Zone 2 Ex ec IIC T4A Gc X Ta -20°C to +40°C
    Zone 22 Ex tc IIIC T85°C Dc X Ta -20°C to +55°C
  • NEC & CEC Class / Division Ratings for US / Canada
    Class I Div 2 Group ABCD T4A Ta -20°C to +55°C
    Class II Div 2 Group FG T6 Ta -20°C to +55°C
    Class III Div 1 & 2 Ta -20°C to +55°C

Multi-function patterns

Stage 1: Stage 2: Stage 3:
Steady High Power Flashing 1Hz Triple Strike
Steady Low Power Flashing 1Hz Triple Strike
Flashing 1Hz 2x Flash 2Hz Triple Strike
Flashing 1.5Hz Flashing 2Hz Double Strike
Flashing 2Hz Triple Strike Triple Strike
Double Strike Steady High Power Triple Strike
Triple Strike Flashing 2Hz Double Strike
Note: Remote second and third stage on DC units only
