STA3 Alarm with Xenon/LED Beacon Stack/Tower 2-31-011

Product image
Product Image
Product Image

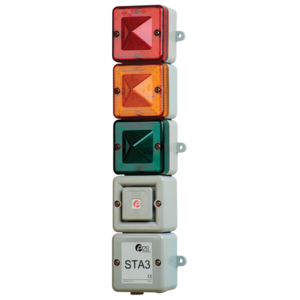

The STA3 is a customisable audio-visual signal featuring a tower of 3 AlertAlight L101 type beacons combined with a SONF1 alarm sounder.
Request a quote for this product
Voltage
Cable Entry Type
Stopping plug/adaptor material
Option
Product Version
Product option
Enclosure Color
Part Number:
STA3

Please see the Part Code table in the product details below for the associate beacon component part numbers.

Request Price or enquire about this product
Enquire about
Alarm with Xenon/LED Beacon Stack/Tower

Description

Each beacon position can contain either a Xenon or high output L.E.D. light source. The STA3 assembly features a pre-wired junction box and cable loom enabling the end user to determine beacon type and position during installation.

Downloads

Datasheet Datasheet.pdf
Installation Manual D171-00-001-IS_Issue_5__STA_.pdf
Beacon/light installation D171-10-800-IS_Issue_2__ST-L101X_.pdf
Beacon/light installation D171-10-900-IS_Issue_3__ST-L101H_.pdf
UL certificate of compliance UL_CoC_-_20140318-E216937_STA__STB__ST-L101H__ST-L101X.pdf
Russian EAC Declaration of Conformity D-GB.G05..12595-20-24.03.2025.pdf
Declaration of Conformity DC-049_Issue_D_STA__STB.pdf
2D drawing (PDF) SK0212_Issue_A.pdf
2D drawing (DWG) SK0212_Issue_A.DWG
Hi-res product image 1 (TIFF) 2-31-010_STA3-G-1.tif

Features

  • SONF1 alarm sounder synchronises automatically on multi-unit systems.
  • Multiple configurations of Xenon and L.E.D. beacons.
  • Internal cable loom and termination PCB simplifies installation.
  • Common negative/neutral supply minimises cabling.
  • High output L.E.D. unit can be set to steady or flashing.
  • Available with red, white or grey housing.
  • Sealed to IP66.
  • Tropicalisation available on request.
  • Also available without SONF1 audible signal – see the STB2/3/4 products

Specification

STA:
Assembly: Enclosure & cable loom
Cable entries: 2 x M20 clearance
Cable loom: Pre-wired with termination PCBA
Terminals: 0.5 to 4.0mm² cables
Ingress Protection: IP66 Type 13/3R
Enclosure material: UL94V0 & 5VA FR ABS/PC
Enclosure colour: RAL3000 Red, RAL7038 Grey and White
Lens material: PC
Fixings: Stainless Steel
Operating temp: -40° to +70°C [-40° to +158°F]
Storage temp: -40° to +70°C [-40° to +158°F]
Relative humidity: 95% at 20°C [68°f]
STA2 Weight: 0.95kg/2.09Ibs
STA3 Weight: 1.15kg/2.53Ibs
STA4 Weight: 1.35kg/2.97Ibs
Alarm Sounder:
Type: SONF1 alarm horn sounder
Maximum output: 100dB(A) @ 1 metre [91dB(A) @ 10ft/3m]
Nominal output: 99dB(A) @ 1m +/- 3dB – Tone 1 [90dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2 (AC voltage variants 1 stage)
Volume control: On board potentiometer
Effective range: 30m/99ft @ 1KHz
Monitoring: Reverse polarity diode protection on DC units.
Xenon Beacon:
Type: L101X Xenon Strobe Beacon
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Effective Intensity cd: 250 cd – calculated from energy (J)
Peak Candela: 86,935 cd* – measured ref. to I.E.S.
Effective Intensity cd: 200 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red, Yellow
Tube life: Emissions are reduced to 70% after 8 million flashes
L.E.D Beacon:
Type: L101H multi-function LED
Light source: High intensity 18 x Cree© SMT White L.E.D. array
Function: High Power Steady
Blinking – 425ms ON 75ms OFF
1.0Hz (60 fpm) – 200ms ON 800ms OFF
1.33Hz (80fpm) – 150ms ON 600ms OFF
Double Flash
Triple Flash
2.0Hz (120fpm) – 125ms ON 375ms OFF
Temporal Flash
Peak/Effective Intensity cd: 180cd – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red, Yellow

Current Consumption

SONF1 Alarm Horn Sounder
Range: Version: Current:
10-30V DC024 12mA
115Vac +/-10% AC115 27mA
230Vac +/-10% AC230 39mA
L101X Xenon Strobe
Range: Version: Current: Max
Current:
10-14Vdc DC012 500mA 531mA @ 14Vdc
20-28Vdc DC024 250mA 271mA@ 20Vdc
115Vac +/-10% AC115 70mA 101mA @ 126.5Vac
230Vac +/-10% AC230 35mA 58mA @ 253Vac
L101H LED Beacon
Range: Version: Current
Steady Mode:
Current
1Hz Flash:
Current
1.5Hz Flash:
Current
2Hz Flash:
Max
Current:
10-14Vdc DC012 167.5mA 79.5mA 84mA 87mA 168mA @ 14Vdc
16-33Vdc DC024 178.5mA 86.5mA 91mA 96mA 183mA @ 24Vdc
48-260Vac AC230 85.5mA @ 115Vac
53mA @ 230Vac
34mA @ 115Vac
18.5mA @ 230Vac
37.5mA @ 115Vac
19.5mA @ 230Vac
40mA @ 115Vac
23.5mA @ 230Vac
166mA @ 48Vac
51mA @ 260Vac

Part Codes

Stack assembly:
Part Code: Ident.: Description:
Product type: STA3 Alarm Horn with 2 x Beacons Signal Stack / Tower
Voltage: AC230
AC115
DC024
230V ac 50/60Hz
115V ac 50/60Hz
12/24V dc
Cable entries: [e] A 2 × 20mm clearance
Stopping plug material: [m] A ABS
Option: [s] 0 Standard configuration
Product version: [v] A UL, cULs
Product option: [o] 1
X
Z
Standard product
Custom configuration – contact E2S
Custom alarm tone software – contact E2S
Enclosure: [x] G
R
W
Grey RAL7038
Red RAL3000
White

Beacon components:
Part Code: Ident.: Description:
Product type: ST-L101X L101X Xenon Beacon 5J
Voltage: AC230
AC115
DC024
DC012
230Vac +/-10% 50/60Hz
115Vac +/-10% 50/60Hz
24Vdc – 20-28Vdc
12Vdc – 10-14Vdc
Version: [v] A1 UL, cULs
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Part Code: Ident.: Description:
Product type: ST-L101H L101H LED Beacon
Voltage: AC230
DC024
DC012
115/230Vac 50/60Hz
16-33Vdc
10-14Vdc
Version: [v] A1 UL, cULs
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Example: For an alarm horn tower with three beacons featuring two Xenon beacons, one red, one amber plus one L.E.D. beacon in green for a 24Vdc supply in a red housing, order the following part codes:
STA3DC024AA0A1R
ST-L101XDC024A1R
ST-L101XDC024A1A
ST-L101HDC024A1G
­­­

Approvals

  • UL & cULs approved
  • EAC compliant

Tone Table

Stage 1 WAV file Frequency Description Stg 2
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 8
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 8
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 9
T 5 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 1
T 6 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 8
T 7 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 9 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 10 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
Following tones applicable for AC voltage version alarm horn:
Stage 1 WAV file Frequency Description
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001
T 5 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 6 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell
T 7 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 8 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping
T 9 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
T 10 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac.
Country specific or custom tone configurations and alarm frequencies are available upon request.
