MA1R Alarm Horn Sounder IP66/67 Type 4/4X/13 2-21-195

Description

The ‘M’ series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets. The MA1R features a compact omni-directional horn and employs the latest in reliable D Class amplifier technology for superior sound output with low in-rush and, current consumption and wide input voltage range.

Downloads

Datasheet	Datasheet.pdf
Installation Manual	D207-01-001-IS_Issue_3__MA1_MA2_.pdf
Russian EAC Declaration of Conformity	_RU_-GB.01.B.57505-21__14.10.2026_.pdf
Russian Maritime register	19.00193.278.pdf
Ingress Protection certificate	CoTC_104520_Issue_2_M.pdf
Declaration of Conformity	DC-028_Issue_J_Marine.pdf
SIL Certificate: Product version [A]	T1072-215-2_SIL2_SIL1_2H__D1xS_D1xC_STExS_STExC_GNExS_A112N_AL112N_A121_AL121_MA_.pdf
2D drawing (PDF)	D207-05-011_Issue_A.pdf
2D drawing (DWG)	D207-05-011_Issue_A.dwg
3D drawing (STEP)	D207-05-011-3D_Issue_A.STEP
Wiring Schematic AC voltage	D207-06-005_Issue_B__MA1_2-AC_.pdf
Wiring Schematic DC voltage	D207-06-001_Issue_C__MA1_2-DC_.pdf
Pole Mount & Sun Shade Drawing	D217-05-074_Issue_1__MA1R_ML15R_.pdf

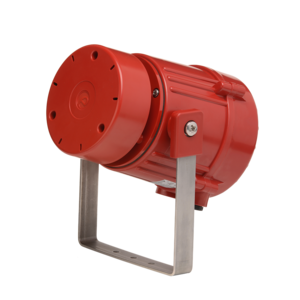

Hi-res product image 1 (TIFF)	2-21-195_MA1R-R.jpg
Hi-res product image 2 (TIFF)	2-21-195_MA1R-G.jpg

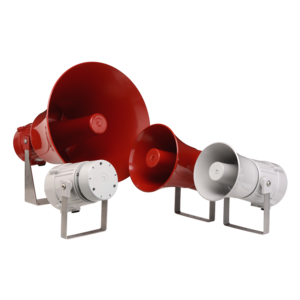

Hi-res product image 3 (TIFF)	2-21-000_MA-GROUP-1.jpg

Features

Ingress protection IP66/67 Type 4/4X/13
Automatic synchronisation on multi-sounder systems
Continuously rated
Very large termination area
Dual M20 or 1/2"NPT cable entries – adaptors available
316 (A4) Stainless steel mounting bracket
Ratchet adjustable ‘U’ bracket for 360° positioning
Duplicate pluggable cable terminations
Conformal coated (tropicalised) electronics
64 alarm tone frequencies and 4 remotely activated alarm stages
Positive or negative stage activation switching
Alternative activation configurations available
Available with custom tone configurations and frequencies

Specification


Maximum output:	114dB(A) @ 1 m +/- 3dB [105dB(A) @ 10ft/3m +/- 3dB]
Nominal output:	111dB(A) @ 1m +/- 3dB [102dB(A) @ 10ft/3m] +/- 3dB
No. of tones:	64 (UKOOA / PFEER compliant)
No. of stages:	4
Volume control:	Full range control
Effective range:	108m/355ft @ 1KHz
Voltages DC:	10-60V dc High voltage DC option available
Voltages AC:	100-240V ac 50/60Hz
In rush:	815mA within 4.0ms @ 24Vdc
Stage switching:	Negative, positive, voltage free
Safety Integrity Level:	SIL1 and SIL2 Route 2H IEC61508 (2010)
Ingress protection:	IP66 & IP67 Type 4/4X/13
Enclosure material:	High impact UL94 V0 & 5VA FR ABS
Enclosure colour:	Grey (RAL7038) or Red (RAL3000
Cable entries:	2 x M20; 1 x M20 & 1 × 1/2"NPT; 2 × 1/2"NPT supplied with blanking plug
Terminals:	0.5 – 2.5mm² (20-14 AWG)
Line monitoring:	Diode polarized for use in supervised circuits
Operating temp:	-40 to +66°C [-40° to +151°F]
Storage temp:	-40 to +70°C [-40° to +158°F]
Relative humidity:	99%
MTBF DC:	93.92 years / 822,706 hours – MIL 217
MTBF AC:	46.66 years / 408,508 hours – MIL 217
Weight DC:	2.50kg/5.5Ibs
Weight AC:	3.00kg/6.6Ibs

Current Consumption

Product Version:	Nominal Voltage:	Voltage Range:	Current Consumption:

DC024	12V dc 24V dc 48Vdc	10-60V dc	280mA 224mA 122mA
AC230	115Vac 50/60Hz 230V ac 50/60Hz	100-240Vac	100mA 64mA

Part Codes

Variable:	Identifier:	Description:

Product type:	MA1	Alarm horn sounder
Flare type:	R	Omni-directional horn
Voltage:	DC024 AC230	10-60V dc 100-240V ac 50/60Hz
Cable entries: [e]	A B C	M20x1.5 & ½” NPT M20x1.5 & M20x1.5 (Default) ½” NPT & ½” NPT
Stopping plug material: [m]	N	Nylon
Bracket: [s]	1 3	316 (A4) Stainless Steel 316 (A4) Stainless Steel with Equipment tag
Product version: [v]	A	CE, UKCA, EAC, RMRS – SIL1 & SIL2
Product option: [o]	1 T Z X Y K V	Standard product Telephone/Relay initiate Custom alarm tone software – contact E2S Custom configuration – contact E2S Stage control Config. 4 Stage control Config. 5 (DC) and Config. 2 (AC) Stage control Config. 6
Enclosure colour: [x]	G R S	Grey Red Special colour – contact E2S
Accessories: SP65-0001-A4 SP65-0003-A4	Pole Mount Bracket Kit St/St 316 (A4) Sunshade – St/St 316 (A4)
Alarm stage control:
Please review the installation manual and wiring schematics for remote stage control and EOL resistor monitoring configuration options:
Config. 1 [DC]:	Factory default. Common negative, positive switching. Up to 4 Alarm Stages. EOL monitoring Alarm Stage 1 only
Config. 2 [DC]:	User setting. Common positive, negative switching. Up to 4 Alarm Stages. EOL monitoring Alarm Stage 1 only
Config. 3 [DC]:	User setting. Common negative, positive switching activation of Alarm Stages 1 & 2 with EOL on both stages. Reverse polarity monitoring
Config. 4 [DC]:	Product option ‘Y’. Independent activation of Alarm Stages 1 & 2 with EOL on both stages. Forward polarity monitoring
Config. 5 [DC]:	Product option ‘K’. Horn continuously powered. Voltage free activation of up to 3 alarm stages
Config. 6 [DC]:	Product option ‘V’. Independent activation of up to 4 Alarm Stages with EOL on all stages. Forward polarity monitoring
Config. 1 [AC]:	Factory default. Up to 4 Alarm Stages. Stage 1 activated at power on. Stages 2, 3 and 4 via volt free contacts
Config. 2 [AC]:	Product option ‘K’. Horn continuously powered. Voltage free activation of up to 3 alarm stages

Approvals

Russian Maritime Register of Shipping
Cert: No. 19.00193.278
SIL1 & SIL2 compliant to IEC61508 (2010)

Note

The MA1R and MA1F are direct, backward compatible, replacements for the MA112 alarm horn sounder.

Tone Table

Stage 1	WAV file	Frequency Description.	Stage 2	Stage 3	Stage 4
T 1	/system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV	1000 Continuous – PFEER Toxic Gas	Any	T 2	T 44
T 2	/system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV	1200/500 @ 1Hz Sweeping – DIN / PFEER P.T.A.P.	Any	T 3	T 44
T 3	/system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV	1000 @ 0.5Hz (1s on, 1s off) Intermittent – PFEER Gen. Alarm	Any	T 2	T 44
T 4	/system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV	1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s – NF C 48-265	Any	T 24	T 1
T 5	/system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV	544(100mS)/440 (400mS) – NF S 32-001	Any	T 19	T 1
T 6	/system/1/assets/files/000/000/947/947/8f040484a/original/TF053.wav	1500/500 – (0.5s on , 0.5s off) x3 + 1s gap – AS4428	Any	T 44	T 1
T 7	/system/1/assets/files/000/000/944/944/890010fd0/original/TF054.wav	500-1500Hz Sweeping 2 sec on 1 sec off – AS4428	Any	T 44	T 1
T 8	/system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV	500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) – NEN 2575	Any	T 24	T 35
T 9	/system/1/assets/files/000/000/953/953/5deedc543/original/TF055.wav	1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a	Any	T 34	T 1
T 10	/system/1/assets/files/000/000/952/952/3a041fde3/original/TF056.wav	1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a	Any	T 34	T 1
T 11	/system/1/assets/files/000/000/946/946/761de34c6/original/TF057.wav	420(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal	Any	T 1	T 8
T 12	/system/1/assets/files/000/000/945/945/689d9405a/original/TF058.wav	1000(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal	Any	T 1	T 8
T 13	/system/1/assets/files/000/000/950/950/2d337d14e/original/TF059.wav	422/775 – (0.85 on, 0.5 off) x3 + 1s gap – NFPA Temporal	Any	T 1	T 8
T 14	/system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV	1000/2000 @ 1Hz – Singapore	Any	T 3	T 35
T 15	/system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV	300 Continuous	Any	T 24	T 35
T 16	/system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV	440 Continuous	Any	T 24	T 35
T 17	/system/1/assets/files/000/000/948/948/c697b364a/original/TF060.wav	470 Continuous	Any	T 24	T 35
T 18	/system/1/assets/files/000/000/949/949/7e429e658/original/TF061.wav	500 Continuous – IMO code 2 (Low)	Any	T 24	T 35
T 19	/system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV	554 Continuous	Any	T 24	T 35
T 20	/system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV	660 Continuous	Any	T 24	T 35
T 21	/system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV	800 Continuous – IMO code 2 (High)	Any	T 24	T 35
T 22	/system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV	1200 Continuous	Any	T 24	T 35
T 23	/system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV	2000 Continuous	Any	T 3	T 35
T 24	/system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV	2400 Continuous	Any	T 20	T 35
T 25	/system/1/assets/files/000/000/951/951/d9ce2b2c6/original/TF062.wav	440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent	Any	T 44	T 8
T 26	/system/1/assets/files/000/000/954/954/b703d99f1/original/TF063.wav	470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent	Any	T 44	T 8
T 27	/system/1/assets/files/000/000/955/955/0f602886a/original/TF064.wav	470 @ 5Hz (0.10s on, 0.10s off) Intermittent	Any	T 44	T 8
T 28	/system/1/assets/files/000/000/956/956/dbb5f64db/original/TF065.wav	544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent	Any	T 24	T 8
T 29	/system/1/assets/files/000/000/957/957/7bd3d8c1c/original/TF066.wav	655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent	Any	T 44	T 8
T 30	/system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV	660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent	Any	T 24	T 8
T 31	/system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV	660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent	Any	T 24	T 8
T 32	/system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV	745 @ 1Hz (0.50s on, 0.50s off) Intermittent	Any	T 24	T 8
T 33	/system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV	800 (0.25s on, 1.00s off) Intermittent	Any	T 24	T 8
T 34	/system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV	800 @ 2Hz (0.25s on, 0.25s off) – IMO code 3.a (High)	Any	T 24	T 8
T 35	/system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV	1000 @ 1Hz (0.50s on, 0.50s off) Intermittent	Any	T 24	T 8
T 36	/system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV	2400 @ 1Hz (0.50s on, 0.50s off) Intermittent	Any	T 24	T 8
T 37	/system/1/assets/files/000/000/958/958/a90e62da4/original/TF067.wav	2900 @ 5Hz (0.10s on, 0.10s off) Intermittent	Any	T 24	T 8
T 38	/system/1/assets/files/000/000/959/959/f34b52faa/original/TF068.wav	363/518 @ 1Hz (0.50s / 0.50s) Alternating	Any	T 8	T 19
T 39	/system/1/assets/files/000/000/960/960/368703340/original/TF069.wav	450/500 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 8	T 19
T 40	/system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV	554/440 @ 1Hz (0.50s / 0.50s) Alternating	Any	T 24	T 19
T 41	/system/1/assets/files/000/000/961/961/be2680966/original/TF070.wav	554/440 @ 0.65Hz (0.76s / 0.76s) Alternating	Any	T 8	T 19
T 42	/system/1/assets/files/000/000/962/962/314fe8a1b/original/TF071.wav	561/760 @ 0.83Hz (0.60s / 0.60s) Alternating	Any	T 8	T 19
T 43	/system/1/assets/files/000/000/963/963/5f6deb8a1/original/TF072.wav	780/600 @ 0.96Hz (0.52s / 0.52s) Alternating	Any	T 8	T 19
T 44	/system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV	800/1000 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 24	T 19
T 45	/system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV	970/800 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 8	T 19
T 46	/system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV	800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating	Any	T 24	T 19
T 47	/system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV	2400/2900 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 24	T 19
T 48	/system/1/assets/files/000/000/965/965/e3d76c24c/original/TF073.wav	500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping	Any	T 24	T 12
T 49	/system/1/assets/files/000/000/964/964/4e1cd3f7f/original/TF074.wav	560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping	Any	T 24	T 12
T 50	/system/1/assets/files/000/000/966/966/a8e5f4440/original/TF075.wav	560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping	Any	T 24	T 12
T 51	/system/1/assets/files/000/000/969/969/5734194b1/original/TF076.wav	600/1250 @ 0.125Hz (4s / 4s) Sweeping	Any	T 24	T 12
T 52	/system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV	660/1200 @ 1Hz (0.50s / 0.50s) Sweeping	Any	T 24	T 12
T 53	/system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV	800/1000 @ 1Hz (0.50s / 0.50s) Sweeping	Any	T 24	T 12
T 54	/system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV	800/1000 @ 7Hz (0.07s / 0.07s) Sweeping	Any	T 24	T 12
T 55	/system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV	800/1000 @ 50Hz (0.01s / 0.01s) Sweeping	Any	T 24	T 12
T 56	/system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV	2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping	Any	T 24	T 12
T 57	/system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV	2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping	Any	T 24	T 12
T 58	/system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV	2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping	Any	T 24	T 12
T 59	/system/1/assets/files/000/000/967/967/2e92dbc46/original/TF077.wav	2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping	Any	T 24	T 12
T 60	/system/1/assets/files/000/000/968/968/5dfcb9aea/original/TF078.wav	2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping	Any	T 24	T 12
T 61	/system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV	800Hz Motor Siren	Any	T 24	T 12
T 62	/system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV	1200Hz Motor Siren	Any	T 24	T 12
T 63	/system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV	2400Hz Motor Siren	Any	T 24	T 12
T 64	/system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV	Simulated Bell	Any	T 21	T 12
For Stage 2 any Stage 1 alarm tone sound can be selected.
Country specific or custom tone configurations and alarm frequencies are available upon request.
