E2xL15F PA Loudspeakers 15W 1-32-030

Product image
Product Image

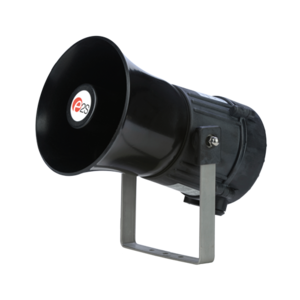

The hazardous area E2xL15F PA loudspeaker is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
Request a quote for this product
Horn Type
Input
Cable Entry Type
Stopping plug/adaptor material
Bracket Material
Version
Enclosure Color
Part Number:
E2xL15
Request Price or enquire about this product
Enquire about
PA Loudspeakers 15W

Description

The E2xL15F is available with either a 70V or 100V line transformer or as a low impedance loudspeaker.
The E2x range features enclosures manufactured from lightweight, corrosion proof GRP and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.

Downloads

Datasheet Datasheet.pdf
Installation Manual D209-01-101-IS_Issue_2__E2xL15_L25_.pdf
IECEx certificate IECEx_ULD_14.0012X_Issue_2_E2x.pdf
ATEX certificate DEMKO_06ATEX_0421554X_Rev_2_E2x.pdf
UL certificate of compliance UL_CoC_-_20060401-E230764_Vol.2_Sec.1_E2xL.pdf
CSFM Listing CSFM_Listing_2279-0505_E2x_2025.pdf
UKCA Certificate UL21UKEX2135X_Rev._0_E2x.pdf
Russian Ex certificate C_RU_C-GB.71..00273_20.pdf
Declaration of Conformity DC-062_Issue_I_E2x.pdf
Declaration of Conformity UKCA DC-103_Issue_A_E2x_UKCA.pdf
2D drawing (PDF) D209-05-001_Issue_2.pdf
2D drawing (DWG) D209-05-001_Issue_2.dwg
3D drawing (STEP) D209-05-001-3D_Issue_1.STEP
SPL Polar Plot D209-08-115_Issue_A__E2xL1F_15W_Polar_Plot_.pdf
EASE files E2xL15F_gll_EASE.zip
Hi-res product image 1 (TIFF) 1-32-030_E2xL15.tif
Wiring Schematic D209-06-101_Issue_B.pdf
Nameplate Drawing D209-09-101_Issue_1.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf

Features

  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Transformer type fitted with thermal fuse
  • Complies with BS5839 part 8

Specification

SPL: 108dB +/-3dB @ 1w @ 1m (Pink noise)
118dB +/-3dB @ 15w @ 1m (Rated)
Rated power: 15 Watts RMS
70v line tappings: 15w / 7.5w / 3w / 1w
-(z=336.67 Ohms / 653.33 Ohms / 1.6k Ohms / 4.9k Ohms)
100v line tappings: 15w / 7.5w / 3w / 1w
-(z=666.87 Ohms / 1.34k Ohms / 3.34k Ohms / 10k Ohms)
Low impedance: 8 Ohm (I/P: 10.95V)
-or 16 Ohm (I/P: 15.49V)
Dispersion: 120° @ 1kHz & 32° @ 4kHz
Frequency range: 400Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor
-(Transformer version)
Ingress protection: IP rating per EN60079-0:IP64
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/13
Enclosure material: UL94V0 GRP (PPS) & ABS
Cable entries: Dual M20x1.5 or 1/2"NPT
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Operating temp: -20 to +55°C [-4° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
MTBF V100/V070: 630.69 years / 5,524,861 hours – MIL 217
MTBF R008/R016: 830.22 years / 7,272,727 hours – MIL 217
Weight: Low impedance: 2.5kg/5.5Ibs
-Transformer: 3.00kg/6.6Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Part Code: Ident.: Description:
Product type: E2xL15
Horn type: F Flare Horn
Type: V100
V070
R008
R016
100V Line
70V Line
8 Ohm Low impedance
16 Ohm Low impedance
Cable entries: A
B
C
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: N Nylon
Bracket & tag: [s] 1
2
3
4
304 A2 Stainless Steel
316 A4 Stainless Steel
304 A2 Stainless Steel & Equip. Tag
316 A4 Stainless Steel & Equip. Tag
Approvals: A1 UL, cULs, IECEx & ATEX
Enclosure: B Black
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • ATEX certificate: DEMKO 06 ATEX 0421554X
  • IECEx certificate: IECEx ULD 14.0012X
  • UL/cUL File ref: E230764
  • UKCA certificate: UL21UKEX2135X
  • CSFM listing: 7136-2279:0505
  • Ex EAC certified: EAC RU C-GB.AA71.B.00273/20

Coding

  • IECEx / ATEX:
    II 3G Ex ec IIC T4 Gc Ta -20°C to +55°C
    II 3D Ex tc IIIC T85°C Dc Ta -20°C to +550°C
  • NEC Class / Zone ratings US:
    Class I Zone 2 AEx ec IIC T4 Gc Ta -20°C to +55°C
    Zone 22 AEx tc IIIC T85°C Dc Ta -20°C to +55°C
  • CEC Class / Zone ratings Canada
    Class I Zone 2 Ex ec IIC T4 Gc X Ta -20°C to +55°C
    Zone 22 Ex tc IIIC T85°C Dc Ta -20°C to +55°C
  • NEC & CEC Class / Division Ratings for US / Canada
    Class I Div 2 Group ABCD T3C Ta -20°C to +55°C
    Class I Div 2 Group ABCD T4 Ta -20°C to +40°C
    Class II Div 2 Group FG T6 Ta -20°C to +55°C
    Class III Div 1 & 2 Ta -20°C to +55°C
