E2xL25F PA Loudspeaker 25W 1-32-040

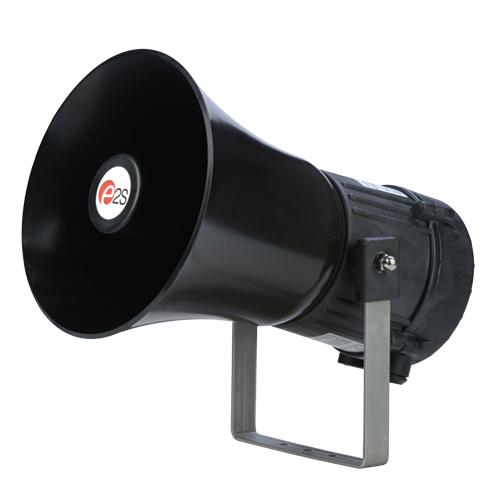

Product image
Product Image
The hazardous area E2xL25F PA loudspeaker is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
Request a quote for this product
Horn Type
Cable Entry Type
Stopping plug/adaptor material
Bracket Material
Enclosure Color
Part Number:
Request Price or enquire about this product
Enquire about
PA Loudspeaker 25W


The E2xL25F is available with either a 70V or 100V line transformer or as a low impedance loudspeaker.
The E2x range features enclosures manufactured from lightweight, corrosion proof GRP and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.


Datasheet Datasheet.pdf
Lo-res product image 1 (JPG) 1-32-040_E2xL25.jpg
Installation Manual D209-00-101-IS-SC_Issue_C_E2xL15_25.pdf
IECEx certificate IECEx_ULD_14.0012X_Issue_1_E2x.pdf
ATEX certificate DEMKO_06ATEX_0421554X_Rev_1_E2x.pdf
UL certifcate of compliance UL_CoC_-_20170720-E230764_Vol._2_E2xL.pdf
CSFM Listing CSFM_Listing_2279-0505_E2x_2023.pdf
UKCA Certificate UL21UKEX2135X_Rev._0_E2x.pdf
Russian Ex certificate C_RU_C-GB.71..00273_20.pdf
Declaration of Conformity DC-062_Issue_H_E2x.pdf
2D drawing (PDF) SK0122_Issue_C.pdf
2D drawing (DWG) SK0122_Issue_C-DAT.dwg
3D drawing (IGS) SK0122-3D_Issue_A.IGS
3D drawing (STEP) SK0122-3D_Issue_A.STEP
Wiring Schematic D209-06-101_Issue_A__E2xL15_L25.pdf


  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Transformer type fitted with thermal fuse
  • Complies with BS5839 part 8


SPL: 111dB +/-3dB @ 1w @ 1m (Pink)
124dB +/-3dB @ 25w @ 1m (Rated)
Rated power: 25 Watts RMS
70v line tappings: 25w / 12.5w / 6w / 2w tappings
(z=196 Ohms / 392 Ohms /
816.67 Ohms / 2.45k Ohms)
100v line tappings: 25w / 12.5w / 6w / 2w tappings
(z=400 Ohms / 800 Ohms /
1.67k Ohms / 5k Ohms)
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 130° @ 1kHz & 32° @ 4kHz
Frequency range: 300Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor
(Transformer version)
Ingress protection: IP rating per EN60079-0:IP64
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/13
Enclosure material: UL94V0 GRP (PPS) & ABS
Cable entries: Dual M20x1.5 or 1/2"NPT
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Operating temp: -20 to +55°C [-4° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: Low impedance: 2.75kg/6.05Ibs
Transformer: 3.25kg/7.15Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Part Code: Ident.: Description:
Product type: E2xL25
Horn type: F Flare Horn
Type: V100
100V Line
70V Line
8 Ohm Low impedance
16 Ohm Low impedance
Cable entries: A
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: N Nylon
Bracket & tag: [s] 1
304 A2 Stainless Steel
316 A4 Stainless Steel
304 A2 Stainless Steel & Equip. Tag
316 A4 Stainless Steel & Equip. Tag
Approvals: A1 UL, cULs, IECEx & ATEX
Enclosure: B Black
Accessories: SP65-0001-A4
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A4 (316)


  • ATEX certificate: DEMKO 06 ATEX 0421554X,
  • IECEx certificate: IECEx ULD 14.0012X
  • UL/cUL File ref: E230764
  • UKCA certificate: UL21UKEX2135X
  • CSFM listing: 7136-2279:0505
  • Ex EAC certified: ЕАC RU C-GB.АА71.В.00273/20


  • IECEx / ATEX:
    II 3G Ex nA IIC T2 Gc Ta -20°C to +55°C
    II 3D Ex tc IIIC 85°C Dc Ta -20°C to +40°C
    II 3D Ex tc IIIC 100°C Dc Ta -20°C to +55°C
  • NEC Class / Zone ratings US:
    Class I Zone 2 AEx nA IIC T2 Gc Ta -20°C to +55°C
    Zone 22 AEx tc IIIC T85°C Dc Ta -20°C to +40°C
    Zone 22 AEx tc IIIC 100°C Dc Ta -20°C to +55°C
  • CEC Class / Zone ratings Canada
    Ex nA IIC T2 Gc Ta -20°C to +55°C
    Ex tc IIIC 85°C Dc Ta -20°C to +40°C
    Ex tc IIIC 100°C Dc Ta -20°C to +55°C
  • NEC & CEC Class / Division Ratings for US / Canada
    Class I, Div 2, ABCD T2C Ta -20°C to +55°C
    Class I, Div 2, ABCD T2D Ta -20°C to +40°C
    Class II, Div 2, FG T5 Ta -20°C to +55°C
    Class II, Div 2, FG T6 Ta -20°C to +40°C
    Class III, Div 1&2 Ta -20°C to +55°C
