B300RTH Rotating Beacon [Halogen Bulb] 2-12-010

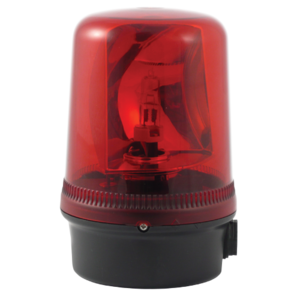

Product image
Product Image
The B300RTH rotating beacon features a 20/25W Halogen lamp providing 821 Candelas of light output. The parabolic reflecting mirror creates a focused beam of light maximising the visual effectiveness.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
B300RTH
Request Price or enquire about this product
Enquire about
Rotating Beacon [Halogen Bulb]

Description

The UV stable, fire retardant polycarbonate enclosure and coloured lens ensure the B300RTH is robust enough for the toughest of applications. The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.

Downloads

Datasheet Datasheet.pdf
Installation Manual B300RTH_D113-00-001-IS_Iss_B.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Declaration of Conformity DC-026_Issue_D_Spectra.pdf
2D drawing (PDF) SK0011_Issue_B.pdf
2D drawing (DWG) SK0011_Issue_B.dwg
2D drawing (PDF) SK0051_Issue_B_B300RAB001_Right_angle_bracket_for_wall_mounting.pdf
2D drawing (PDF) SK0144_Issue_B_B300TMA001_Pole_mounting_assembly_140mm.pdf
Hi-res product image 1 (TIFF) 2-12-010_B300RTH-R.tif
Hi-res product image 2 (TIFF) 2-12-010_B300RTH-A.tif
Lo-res product image 1 (JPG) 2-12-010_B300RTH-R.jpg
Lo-res product image 2 (JPG) 2-12-010_B300RTH-A.jpg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.

Specification

Light source: Halogen Lamp G6,35/GY6,35
Light output: 20/25W
Peak Candela: 821 cd
Candela: 125 cd* (effective intensity)
Rotation speed: 180RPM (+/-30RPM)
Drive life: >5,000 hrs
Duty cycle: 100%
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Lens type: Plain
Mounting: Surface mount (right angle or pole mount accessories available)
Entries: 1 × 5-7mm push through grommet
1 x M20 cable entry
Dimensions: ø100 x 150mm
Ingress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Lens material: High impact UL94 V0 (f1) PC
Terminals: 1.5 mm² flying lead assembly
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 370g/0.81Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Current mA:
12V dc 1.72A
24V dc 0.91A
115V ac 50/60Hz 216mA
230V ac 50/60Hz 117mA

Part Codes

Version: Wattage: Part code:
12V dc 20W B300RTH012B/[x]
24V dc 20W B300RTH024B/[x]
115V ac 25W B300RTH115B/[x]
230V ac 25W B300RTH230B/[x]
[x] = Lens colour: A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow

Accessories

Accessory Part Code: Description: Model
B300RAB001 Right angle bracket for wall mounting B300
B300TMA001 Pole mounting assembly (140mm) B300

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.

Spare bulb/lamp part codes

Version: Wattage: Type: Part code:
12V dc 20W G6,35/GY6,35 BJC20W12VCL
24V dc 20W G6,35/GY6,35 BJC20W24VCL
115V ac 25W G6,35/GY6,35 BJCD25W120VCL
230V ac 25W G6,35/GY6,35 BJCD25W230VCL
