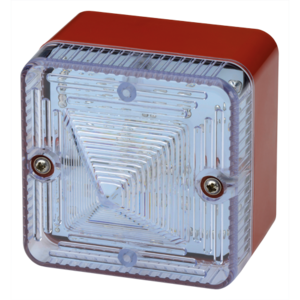

L101X Xenon Beacon 2-13-010

Product image
Product Image
Product Image
The L101X is a compact, robust 5 Joule Xenon strobe beacon ideal for all general signalling applications including fire, security and process control. CPR compliant – tested to EN54-23.
Request a quote for this product
Voltage
Back box type
Enclosure Color
Lens Color
Version
Part Number:
L101X
Request Price or enquire about this product
Enquire about
Xenon Beacon

Description

CPR compliant, approved to EN54-23:2010 for use in fire alarm systems, the L101X also carries GOST approval and cULs approval for general signalling. Featuring an automatically synchronised flash rate of 1Hz (60 flashes per minute) as standard, the DC voltage versions also have user selectable 1.5Hz (90 flashes per minute) and double-strike flash rates.

Downloads

Datasheet Datasheet.pdf
Installation Manual L101X__D185-00-001-IS_Issue_2_.pdf
UL version installation L101X_Inst_UL__D185-00-101-IS_Issue_1_.pdf
UL certifcate of compliance UL_CoC_-_20111209-E216937_L101__L101H.pdf
VdS certificate VdS_G211077_L101X.pdf
EC Certificate of Conformity 0786-CPD-21247_L101X.PDF
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Ingress Protection certificate 58D22760F_IP66_certificate_-_L101.pdf
Declaration of Conformity DC-048_Issue_C_L101X.pdf
Declaration of Performance DP_-_0786-CPD-21247-Issue_A_L101X.pdf
2D drawing (PDF) SK0263_Issue_A.pdf
2D drawing (DWG) SK0263_Issue_A.dwg
3D drawing (IGS) SK0263-L101_Standard-3D_Issue_A.IGS
3D drawing (IGS) SK0263-L101_A100-3D_Issue_A.IGS
3D drawing (IGS) SK0263-L101_Sonora-3D_Issue_A.IGS
3D drawing (IGS) SK0263-L101_Multipurpose-3D_Issue_A.IGS
3D drawing (STEP) SK0263-L101_Standard-3D_Issue_A.STEP
3D drawing (STEP) SK0263-L101_A100-3D_Issue_A.STEP
3D drawing (STEP) SK0263-L101_Sonora-3D_Issue_A.STEP
3D drawing (STEP) SK0263-L101_Multipurpose-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 2-13-010_L101X-B-R-C.tif
Hi-res product image 2 (TIFF) 2-13-010_L101X-A-R-R.tif
Hi-res product image 3 (TIFF) 2-13-010_L101X-B-R-A.tif
Lo-res product image 1 (JPG) 2-13-010_L101X-B-R-C.jpg
Lo-res product image 2 (JPG) 2-13-010_L101X-A-R-R.jpg
Lo-res product image 3 (JPG) 2-13-010_L101X-B-R-A.jpg

Features

  • Back boxes available with and without mounting lugs.
  • Pluggable terminals.
  • In and out terminals.
  • Multiple, user selectable flash rates.
  • User replaceable Xenon tube lamp.
  • Tropicalisation available on request.
  • Can be stacked to create multi-signal units.
  • Can be combined with AlertAlarm & Sonora audible signals.

Specification

Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
DC units: Optionally 1.5Hz
& double strike
Peak Candela: 500,000 cd – calculated from energy (J)
Effective Intensity cd: 250 cd – calculated from energy (J)
Peak Candela: 86,935 cd* – measured ref. to I.E.S.
Effective Intensity cd: 200 cd* – measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm² cables.

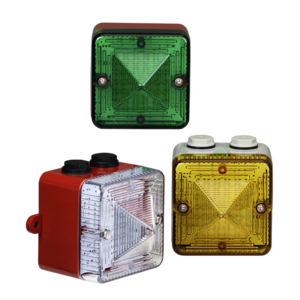

Lens colours: Amber, Blue, Clear, Green, Red, Yellow
Tube life: Emissions are reduced to 70% after 8 million flashes
General:
Ingress Protection: IP66
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL3000 Red, RAL7038
Grey and White
Lens material: PC
Fixings: Stainless Steel
Operating temp: -25° to +55°C [-13° to +131°F]
Storage temp: -40° to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.20kg/0.44Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
12V dc/ac L101XDC012[b][x]/[y]
24V dc/ac L101XDC024[b][x]/[y]
48V dc L101XDC048[b][x]/[y]
48V ac L101XAC048[b][x]/[y]
115V ac L101XAC115[b][x]/[y]
230V ac L101XAC230[b][x]/[y]
[b] = Back box type: B: standard L101 type
M: Multi-purpose type
A: A100 type
S: Sonora type
[x] = Housing colour: G: Grey, R: Red, W: White
[y] = Lens colour: A: Amber, B: Blue. C: Clear,
G: Green, M: Magenta R: Red, Y: Yellow
Suffix part number with ‘-UL’ for UL approved version
B, A and M back box options only – see product outline drawings for full details
UL version approved for general signaling (non fire alarm) use.

Approvals

  • CPD approval: 0786-CPD-21247 to EN54-23:2010.
  • VdS certificate: G211077 (24 & 48Vdc versions).
  • UL & cULs approved: General signalling use.
  • GOST-R certificate: POCC GB.JB05.H00144.

Current

Version: Voltage: Current mA: Part Code:
12V dc/ac 10-14V 500mA/380mA L101XDC012[b][x]/[y]
24V dc/ac 20-28V 250mA/300mA L101XDC024[b][x]/[y]
48V dc 42-52V 175mA L101XDC048[b][x]/[y]
48V ac +/-10% 250mA L101XA0C48[b][x]/[y]
115V ac +/-10% 70mA L101XAC115[b][x]/[y]
230V ac +/-10% 35mA L101XAC230[b][x]/[y]

EN54-23 Performance

Unit: Cat. C [Ceiling] Cat. W [Wall] Cat. O [Open] Power
L101XDC024[b][x]/C C-9-6.8
V=326.9m³
W-2.4-4.8
V=55.3m³
O-4.8-10
V=230.4m³
6W
L101XDC024[b][x]/R C-3-2.6
V=15.9m³
n/a
n/a
O-1.9-3.6
V=13.0m³
6W
L101XDC048[b][x]/C C-9-7
V=346.4m³
W-2.5-5
V=62.5m³
O-5-10
V=250.0m³
8.4W
L101XDC048[b][x]/R C-3-3
V=21.2m³
n/a
n/a
O-2-4
V=16.0m³
8.4W
