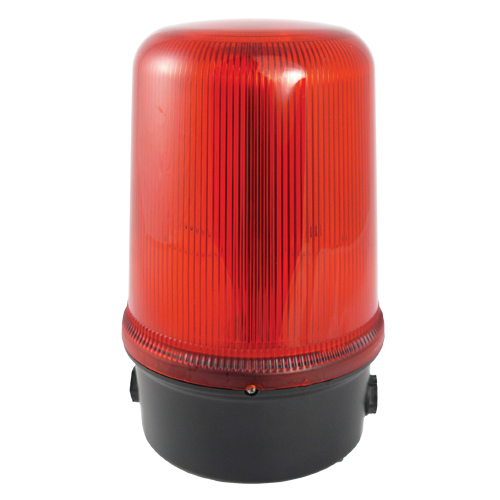

B400STR Xenon Strobe Beacon 2-13-040

Product image
Product Image
Product Image
The B400 series comprises Xenon strobe beacons, permanent filament bulb or halogen beacon, blinking filament bulb or halogen beacon, rotating halogen beacon and a multi-function L.E.D. array beacon.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
B100STR
Request Price or enquire about this product
Enquire about
Xenon Strobe Beacon

Description

The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly. The B400STR Xenon beacon features an automatically synchronised flash rate of 1Hz (60 flashes per minute) as standard and also have user selectable 1.5Hz (90 flashes per minute) and double-strike flash rates.

Downloads

Datasheet Datasheet.pdf
Installation Manual B400STR_D122-00-001-IS_Iss_E.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-026_Issue_D_Spectra.pdf
2D drawing (PDF) SK0012_Issue_B.pdf
2D drawing (DWG) SK0012_Issue_B.dwg
2D drawing (PDF) SK0050_Issue_B_B400RAB001_Right_angle_bracket_for_wall_mounting.pdf
2D drawing (PDF) SK0269_Issue_B_B400TMA001_Pole_mounting_assembly_140mm.pdf
Hi-res product image 1 (TIFF) 2-13-040_B400STR-R.tif
Hi-res product image 2 (TIFF) 2-13-040_B400STR-Y.tif
Hi-res product image 3 (TIFF) 2-13-040_B400STR-G.tif
Lo-res product image 1 (JPG) 2-13-040_B400STR-R.jpg
Lo-res product image 2 (JPG) 2-13-040_B400STR-Y.jpg
Lo-res product image 3 (JPG) 2-13-040_B400STR-G.jpg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.

Specification

Light source: Xenon Strobe
Energy: 15 Joules (15Ws)
Flash rate: 1Hz (60 fpm)
Optional 1.5Hz
or double strike
Synchronisation: 1Hz flash rate automatically synchronised
Peak Candela: 1,500,000 cd – calculated from energy (J)
Effective Intensity cd: 750 cd – calculated from energy (J)
Peak Candela: 94,790 cd* – measured ref. to I.E.S.
Effective Intensity cd: 500 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green,
Red & Yellow
Lens type: Prismatic (standard) or plain
Mounting: Surface mount
(right angle or pole mount accessories available)
Entries: 1 × 5-7mm push through grommet
2 x M20 cable entry
Dimensions: ø140 x 220mm
Ingress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Lens material: High impact UL94 V0 (f1) PC
Terminals: 1.5 mm² flying lead assembly
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 535g/1.17Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Current:
24V dc/ac 870mA
48V dc/ac 480mA
115V ac 50/60Hz 400mA
230V ac 50/60Hz 225mA

Part Codes

Version: Energy: Part code:
24V dc/ac 15 Joules B400STR024B/[x]
48V dc/ac 15 Joules B400STR048B/[x]
115V ac 15 Joules B400STR115B/[x]
230V ac 15 Joules B400STR230B/[x]
[x] = Lens colour: A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow

Accessories

Accessory Part Code: Description: Model
B400RAB001 Right angle bracket for wall mounting B400
B400TMA001 Pole mounting assembly (140mm) B400

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.
