B100STR Panel Mount Xenon Strobe Beacon 2-13-050

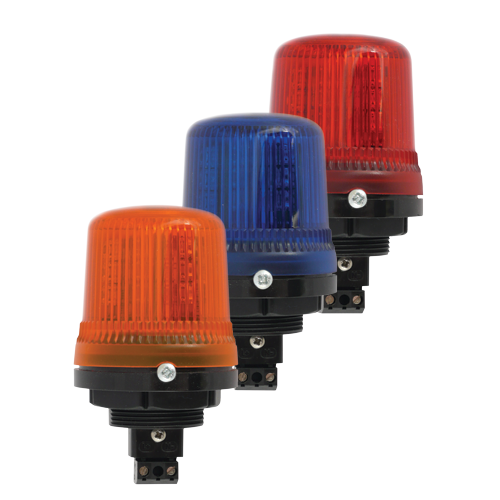

Product image
Product Image
The B100 series is comprised of a Xenon strobe beacon, permanent filament bulb, blinking filament bulb and a permanent LED array beacon version.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
B200STR
Request Price or enquire about this product
Enquire about
Panel Mount Xenon Strobe Beacon

Description

The panel mount base incorporates a pluggable terminal block ensuring rapid installation and maintenance.

Downloads

Datasheet Datasheet.pdf
Installation Manual B100STR_D142-00-001-IS_Iss_B.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-026_Issue_D_Spectra.pdf

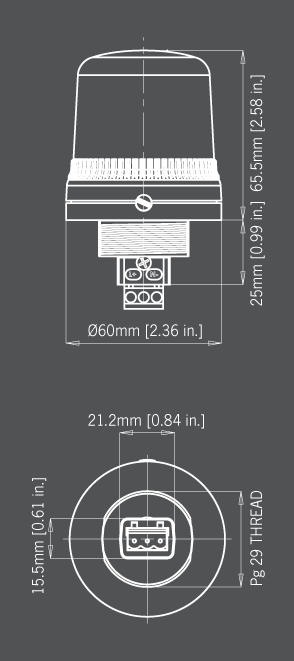

2D drawing (PDF) SK0009_Issue_B.pdf
2D drawing (DWG) SK0009_Issue_B.dwg
Hi-res product image 1 (TIFF) 2-13-050_B100STR_A-B-R.tif
Lo-res product image 1 (JPG) 2-13-050_B100STR_A-B-R.jpg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.

Specification

Light source: Xenon Strobe
Energy: 1 Joule (1Ws)
Flash frequency: 0.75 Hz
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Lens type: Prismatic (standard) or plain
Peak Candela: 100,000 cd – calculated from energy (J)
Effective Intensity cd: 50 cd – calculated from energy (J)
Peak Candela: 59,155 cd* – measured ref. to I.E.S.
Effective Intensity cd: 37 cd* – measured ref. to I.E.S.
Mounting: Panel mount PG29
Ingress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Terminals: 0.5 to 1.5mm² pluggable
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 93g/2.04Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Current mA:
10-30V dc/ac 82mA (24V dc)
145mA (24V ac)
115V ac 50/60Hz 30mA
230V ac 50/60Hz 20mA

Part Codes

Version: Energy: Part code:
10-30V dc/ac 1 Joule B100STR030B/[x]
115V ac 1 Joule B100STR115B/[x]
230V ac 1 Joule B100STR230B/[x]
[x] = Lens colour: A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.
