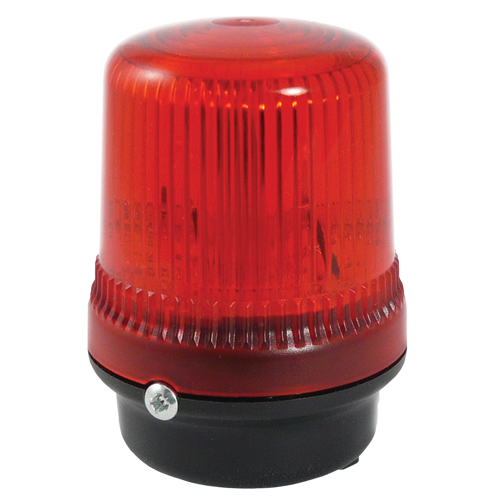

B200LDA LED Permanent Beacon 2-14-050

Product image
Product Image
Product Image
The B200 series is comprised of a Xenon strobe beacon, permanent filament bulb, blinking filament bulb and a permanent LED array beacon version.
Request a quote for this product
Voltage
Enclosure Color
Lens / LED Color
Part Number:
B200LDA
Request Price or enquire about this product
Enquire about
LED Permanent Beacon

Description

The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.

Downloads

Datasheet Datasheet.pdf
Installation Manual B200LDA_D104-00-001-IS_Iss_B.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-026_Issue_D_Spectra.pdf

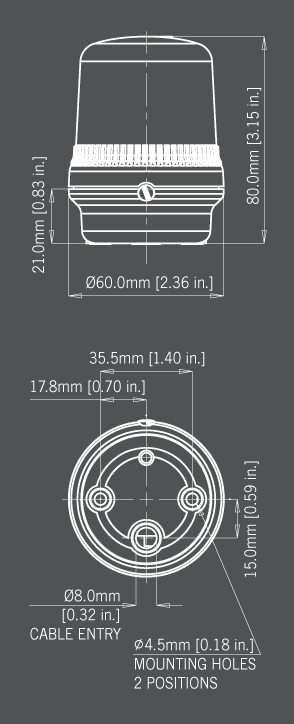

2D drawing (PDF) SK0010_Issue_B.pdf
2D drawing (DWG) SK0010_Issue_B.dwg
2D drawing (PDF) SK0052_Issue_B_B200RAB001_Right_angle_bracket_for_wall_mounting.pdf
2D drawing (PDF) SK0268_Issue_B_B200TMA001_Pole_mounting_assembly_140mm.pdf
Hi-res product image 1 (TIFF) 2-14-050_B200LDA-R.tif
Hi-res product image 2 (TIFF) 2-14-050_B200LDA-Y.tif
Hi-res product image 3 (TIFF) 2-14-050_B200LDA-G.tif
Lo-res product image 1 (JPG) 2-14-050_B200LDA-R.jpg
Lo-res product image 2 (JPG) 2-14-050_B200LDA-Y.jpg
Lo-res product image 3 (JPG) 2-14-050_B200LDA-G.jpg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.

Specification

Light source: 9 x High power L.E.D’s
Lens/L.E.D. colours: Amber, Blue, Clear (White L.E.D), Green, Red & Yellow
Lens type: Prismatic (standard) or plain
Peak/Effective Intensity cd: 5.5 cd* – measured ref. to I.E.S.
Mounting: Surface mount (right angle or pole mount accessories available)
Ingress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Lens material: High impact UL94 V0 (f1) PC
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13 to +122°F]
Storage temp: -40 to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 78g/1.71Ibs
*Candela measurements representative of performance with clear lens at optimum voltage

Current Consumption

Version: Current mA:
10-30V dc 80mA
90-230V ac 50/60Hz 32mA

Part Codes

Version: Voltage: Part code:
030 10-30V dc B200LDA030B/[x]
230 90-230V ac B200LDA230B/[x]
[x] = Lens colour: A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow

Accessories

Accessory Part Code: Description: Model
B200RAB001 Right angle bracket for wall mounting B200
B200TMA001 Pole mounting assembly (140mm) B200

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.
