H110T Signalling Horn with Trumpet 2-21-180

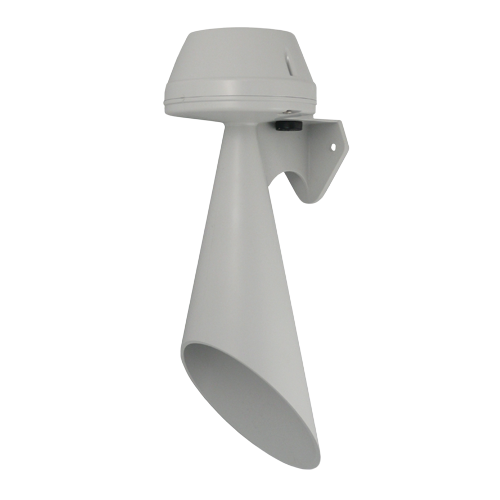

Product image
Product Image
The H110T is a very high output electronic signal horn capable of generating a traditional 'buzzer' warning tone traditionally associated with electro-mechanical signals.
Request a quote for this product
Voltage
Enclosure Color
Part Number:
H110T
Request Price or enquire about this product
Enquire about
Signalling Horn with Trumpet

Description

With an output of 110dB(A) the H110T is ideal for all general signalling applications and the ingress protection rating of IP65 means it is suitable for indoor and outdoor installations.
In addition to the ‘buzzer’ type sound the unit features a further two alarm tones. The first stage sounds also have a remotely selectable second stage.

Downloads

Datasheet Datasheet.pdf
Installation Manual H110T_D153-00-001-IS_Issue_B.PDF
Russian EAC Declaration of Conformity Russian327.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-031_Issue_C_H100__H110.pdf
2D drawing (PDF) SK0063_Issue_B.pdf
2D drawing (DWG) SK0063_Issue_B.DWG
Hi-res product image 1 (TIFF) 2-21-180_H110T.tif
Hi-res product image 2 (TIFF) 2-21-180_H110T_GROUP.tif
Lo-res product image 1 (JPG) 2-21-180_H110T.jpg
Lo-res product image 2 (JPG) 2-21-180_H110T_GROUP.jpg

Features

  • Volume control
  • Stainless steel fixings.

Specification

No. of tones: 3
Output: 110 dB(A) @ 1m [101dB(A) @ 10ft/3m]
Stages: Remotely selectable second stage
Stage switching: DC voltage via negative
AC voltage via live supply
Mounting: Surface mount
Entries: 1 × 5-7mm push through grommet
Dimensions: 336.7 × 135 mm
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 341g/0.75Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.

Current Consumption

Version: Voltage: Current:
10-30V dc/ac 12V dc 52mA
10-30V dc/ac 24V dc 105mA
40-260V dc/ac 48V dc 42mA
10-30V dc/ac 12V ac 50/60Hz 115mA
10-30V dc/ac 24V ac 50Hz 215mA
40-260V dc/ac 48V ac 50/60Hz 68mA
40-260V dc/ac 115V dc 16mA
40-260V dc/ac 230V dc 8mA
40-260V dc/ac 115V ac 50/60Hz 36mA
40-260V dc/ac 230V ac 50/60Hz 18mA

Part Codes

Version: Part code:
10-30V ac/dc H110T030G
40-260V ac/dc H110T230G

Approvals

  • GOST-R approved. Cert: POCC GB.JB05.H00144.

Tone Table

Stage 1 *WAV file* Frequency Description. Stg 2
T 1 /system/1/assets/files/000/000/424/424/33c1c60f3/original/TF052.WAV Electro-mechanical diaphragm horn sound T 2
T 2 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 1
T 3 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
