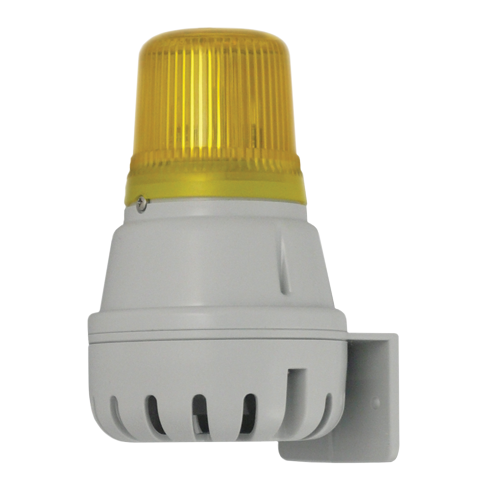

H100BL Signal Horn & LED Beacon 2-31-290

Product image
Product Image
Product Image

Rated for continuous use the H100 series is a compact, high output signal suitable for a variety of installations. In addition to the ‘buzzer’ type sound the unit features a further two alarm sounds.

Request a quote for this product
Voltage
Enclosure Color
Lens / LED Color
Part Number:
H100BL
Request Price or enquire about this product
Enquire about
Signal Horn & LED Beacon

Description

The H100BL incorporates the H100B with a high output permanent LED array. It is available in five L.E.D colours and operating voltages from 10V dc to 230V ac.

Downloads

Datasheet Datasheet.pdf
Installation Manual H100BL_D152-00-701-IS_Iss_A.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Declaration of Conformity DC-031_Issue_C_H100__H110.pdf
2D drawing (PDF) SK0062_Issue_B.pdf
2D drawing (DWG) SK0062_Issue_B.DWG
Hi-res product image 1 (TIFF) 2-31-290_H100BL-Y.tif
Hi-res product image 2 (TIFF) 2-31-290_H100BL-R.tif
Hi-res product image 3 (TIFF) 2-31-290_H100BL-GROUP.tif
Lo-res product image 1 (JPG) 2-31-290_H100BL-Y.jpg
Lo-res product image 2 (JPG) 2-31-290_H100BL-R.jpg
Lo-res product image 3 (JPG) 2-31-290_H100BL-GROUP.jpg

Features

  • Volume control.
  • Stainless steel fixings.
  • Bayonet fixing lens.
  • Anti-tamper locking screw.

Specification

Horn:
No. of tones: 3
Output: 100 dB(A) @ 1m
Beacon:
Light source: 9 x High power L.E.D’s
Function: Permanent
Peak/Effective Intensity cd: 5.5 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear (White L.E.D), Green, Red & Yellow
Lens type: Prismatic (standard) or plain
General:
Dimensions: 135.2 × 94.2mm
Mounting: Surface mount
Entries: 1 × 5-7mm push through grommet
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Lens material: High impact PC (UL94V0 f1)
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 184g/0.40Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with amber lens at optimum voltage.

Part Codes

Version: Part code:
12-30V dc H100BL030G/*
90-260V ac/dc H100BL230G/*
* = L.E.D. colour: A: Amber, B: Blue, W: White (Clear lens),
G: Green, R: Red , Y: Yellow

Approvals

  • GOST-R approved: POCC GB-JB05-H00144.

Beacon current consumption

Version: Voltage: Current:
12-30V dc 12V dc 74mA
12-30V dc 24V dc 80mA
40-260V ac 115V ac 50/60Hz 119mA
40-260V ac 230V ac 50/60Hz 32mA

Horn current consumption

Version: Voltage: Current:
12-30V dc 12V dc 10mA
12-30V dc 24V dc 24mA
40-260V ac 115V ac 50/60Hz 19mA
40-260V ac 230V ac 50/60Hz 10mA

Tone Table

Stage 1 WAV file Frequency Description.
T 1 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 2 /system/1/assets/files/000/000/418/418/664b0e444/original/TF051.WAV Simulated buzzer sound
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
Country specific or custom tone configurations and alarm frequencies are available upon request.
