H110TR Trumpet Horn & Rotating Beacon 2-31-330

Product image
Product Image
The H110T is a very high output electronic signal horn capable of generating a traditional 'buzzer' warning tone traditionally associated with electro-mechanical signals.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
H110TR
Request Price or enquire about this product
Enquire about
Trumpet Horn & Rotating Beacon

Description

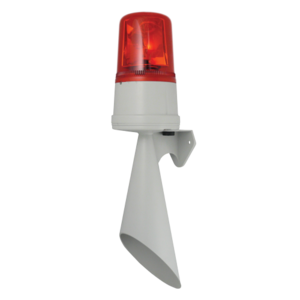

The H110TR incorporates the H110T with a halogen rotating beacon. It is available in six lens colours and operating voltages from 12V dc to 230V ac.

Downloads

Datasheet Datasheet.pdf
Installation Manual H110TR_D153-00-301-IS_Issue_B.PDF
Russian EAC Declaration of Conformity Russian327.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Declaration of Conformity DC-031_Issue_C_H100__H110.pdf
2D drawing (PDF) SK0064_Issue_B.pdf
2D drawing (DWG) SK0064_Issue_B.DWG
Hi-res product image 1 (TIFF) 2-31-330_H110TR-R.tif
Hi-res product image 2 (TIFF) 2-31-330_H110TR-GROUP.tif
Lo-res product image 1 (JPG) 2-31-330_H110TR-R.jpg
Lo-res product image 2 (JPG) 2-31-330_H110TR-GROUP.jpg

Features

  • Volume control.
  • Stainless steel fixings.
  • Bayonet fixing lens.
  • Anti-tamper locking screw.

Specification

Horn:
No. of tones: 3
Output: 110 dB(A) @ 1m [101dB(A) @ 10ft/3m]
Stages: Remotely selectable second stage
Stage switching: DC voltage via negative
AC voltage via live supply
Beacon:
Light source: Halogen Lamp G6,35/GY6,35
Light output: 20/25W
Peak Candela: 821 cd
Candela: 125 cd* (peak/effective intensity)
Rotation speed: 180RPM (+/-30RPM)
Drive life: >5,000 hrs
Duty cycle: 100%
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Lens type: Plain
General:
Dimensions: 462.9 × 135mm
Mounting: Surface mount
Entries: 1 × 5-7mm push through grommet
ngress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Lens material: High impact PC (UL94V0 f1)
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 678g/1.49Ibs
SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Wattage: Part code:
12V dc 20W H110TR012G/*
24V dc 20W H110TR024G/*
115V ac 25W H110TR115G/*
230V ac 25W H110TR230G/*
* = Lens colour: A: Amber, B: Blue, C: Clear,
G: Green, R: Red, Y: Yellow

Approvals

  • GOST-R approved: POCC GB-JB05-H00144.

Beacon current consumption

Version: Voltage: Current:
12V dc 12V dc 1.72A
24V dc 24V dc 910mA
115V ac 115V ac 50/60Hz 216mA
230V ac 230V ac 50/60Hz 117mA

Horn current consumption

Version: Voltage: Current:
12V dc 12V dc 52mA
24V dc 24V dc 105mA
115V ac 115V ac 50/60Hz 36mA
230V ac 230V ac 50/60Hz 18mA

Spare bulb/lamp part codes

Version: Wattage: Type: Part code:
12V dc 20W G6,35/GY6,35 BJC20W12VCL
24V dc 20W G6,35/GY6,35 BJC20W24VCL
115V ac 25W G6,35/GY6,35 BJCD25W120VCL
230V ac 25W G6,35/GY6,35 BJCD25W230VCL

Tone Table

Stage 1 *WAV file* Frequency Description. Stg 2
T 1 /system/1/assets/files/000/000/424/424/33c1c60f3/original/TF052.WAV Electro-mechanical diaphragm horn sound T 2
T 2 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 1
T 3 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
