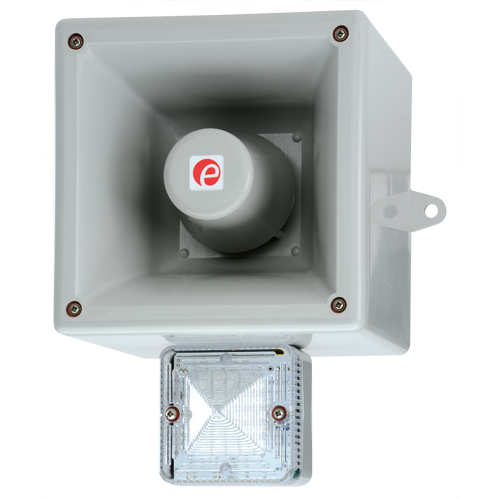

HAL121H Electronic Siren, Buzzer, Claxon & Bell with LED Beacon 2-33-020

Product image
Applications and users that have traditionally demanded conventional electromechanical claxons, sirens, buzzers and bells can now choose the next generation alternative.
Request a quote for this product
Voltage
Enclosure Color
LED Color
Part Number:
HAL121H
Request Price or enquire about this product
Enquire about
Electronic Siren, Buzzer, Claxon & Bell with LED Beacon

Description

The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way.
With output levels of up to 121dB(A) at 1 metre the HAL121 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal quality will not degrade with age.

Downloads

Datasheet Datasheet.pdf
Installation Manual HA121_Inst__ISN5201-A_.pdf
Beacon/light installation L101H_Inst__D169-00-001-D_.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Declaration of Conformity DC-034_Issue_C_Hootronic.pdf
2D drawing (PDF) SK0262_Issue_A.pdf
2D drawing (DWG) SK0262_Issue_A.dwg
Hi-res product image 1 (TIFF) 2-33-020_HAL121H-G.tif
Lo-res product image 1 (JPG) 2-33-020_HAL121H-G.jpg

Features

The products in the Hootronic range have 5 user selectable ‘traditional’ sounds including:

  • Tone 1 : Industrial Claxon
  • Tone 2 : High Frequency Mechanical Siren
  • Tone 3 : Medium Frequency Mechanical Siren
  • Tone 4 : Electro Mechanical Buzzer
  • Tone 5 : Mechanical Bell


Each of these sounds have two additional, remotely selectable, alarm stages.
Remote switch generates genuine ‘tail off’ to sound when alarm is terminated.

  • High output L.E.D array
  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Unit can be mounted using external lugs or internal BESA compatible fixing positions.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.

Specification

Hootronic Sounder:
Nominal output: 121dB(A) @ 1m +/- 3dB – Tone 2 [112dB(A) @ 10ft/3m]
No. of tones: 5
No. of stages: 3
Volume control: Max. 121dB(A); Min. 112dB(A) approx.
Effective range: 300m/984ft @ 1KHz
Beacon:
Light source: High intensity L.E.D. array.
24 x Superflux type high ouput L.E.D’s
Options: Steady or 2Hz flash mode (on board selection)
Peak/Effective Intensity cd: Green L.E.D: 176cd – measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm² cables
L.E.D. colours: Amber Blue, Green, Red and White
Lens colour: All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light
General:
Voltages DC: 12V dc; 24V dc
Voltages AC: 115V ac; 230V ac
Ingress protection: IP56
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000) & grey (RAL7038)
Cable entries: 2 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 4.0mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 2.30kg/5.06Ibs AC:2.90kg/6.38Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Version Part code:
24V dc HAL121HDC024[x]/[y]
115V ac HAL121HAC115[x]/[y]
230V ac HAL121HAC230[x]/[y]
[x] = Housing colour: R: Red, G: Grey
[y] = Lens colour: A: Amber, B: Blue. W: White,
G: Green, R: Red

Alarm sounder

Version: Voltage: Current:
24V dc 10-30V dc 375mA*
115V ac 50/60Hz +/-10% 160mA
230V ac 50/60Hz +/-10% 75mA
* current at nominal voltage

L.E.D. Beacon

Version: Voltage: Current:
24V dc 10-30V dc 155mA (@ 24V dc)
115/230V ac 90-260V 35mA (@230V ac)
50/60Hz ac/dc

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/411/411/491442314/original/TF046.WAV Industrial Claxon T 3 T 5
T 2 /system/1/assets/files/000/000/414/414/146644246/original/TF047.WAV High Frequency Mechanical Siren T 1 T 5
T 3 /system/1/assets/files/000/000/416/416/0c52c2259/original/TF048.WAV Medium Frequency Mechanical Siren T 1 T 5
T 4 /system/1/assets/files/000/000/413/413/c47bf00c7/original/TF049.WAV Electro Mechanical Buzzer T 2 T 5
T 5 /system/1/assets/files/000/000/423/423/854c33e83/original/TF050.WAV Mechanical Bell T 1 T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
