D2xS1 Alarm Horn Sounder 1-32-025

Product Image
Product Image
Product Image

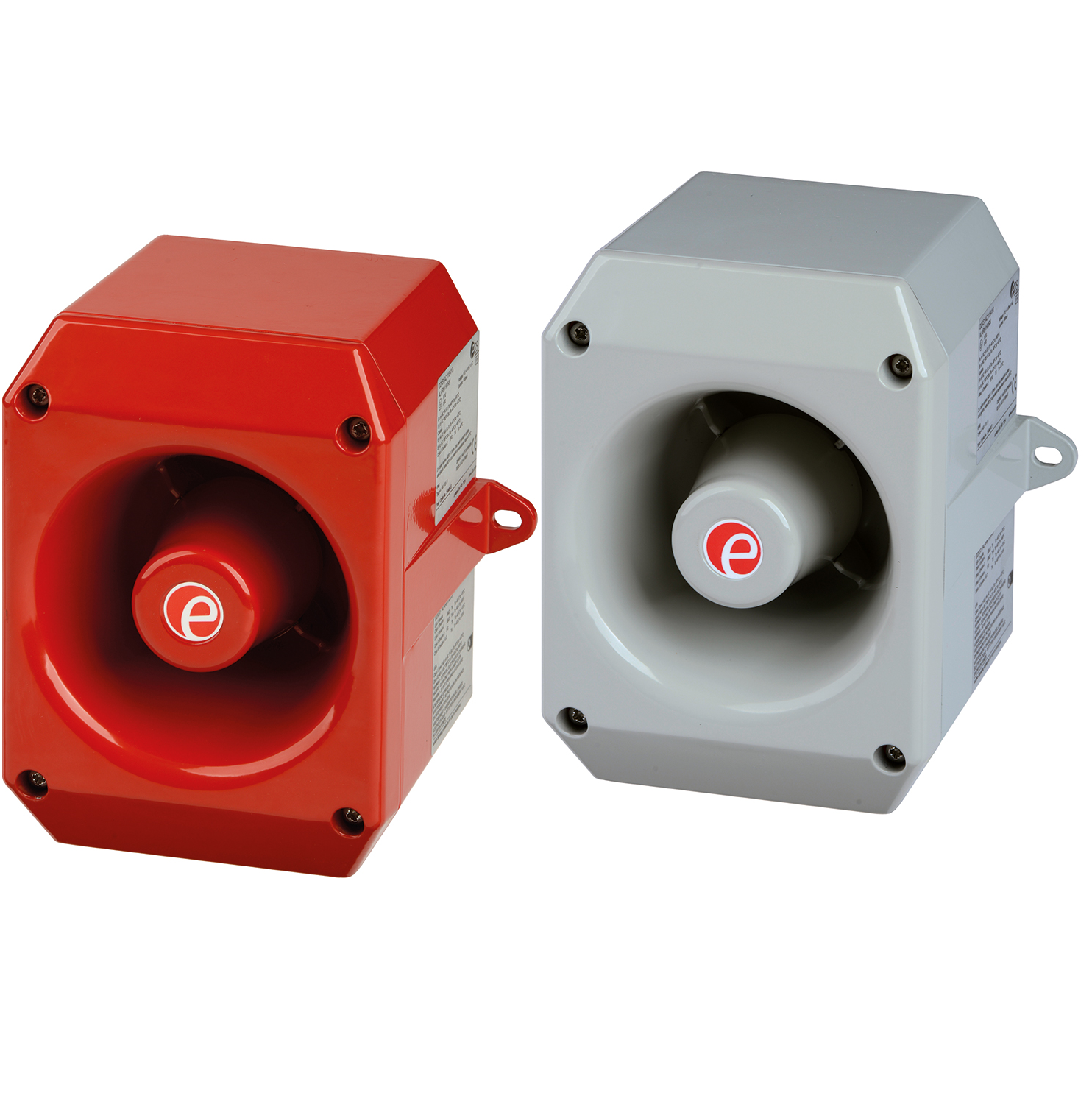

The D2xS1 is a high output, 116dB(A) alarm horn sounder. Low current consumption and high SPL in a compact robust Type 4/4X, IP66 enclosure ensure the D2xS1 is suitable for all haz loc fire alarm system and general signalling applications.
Request a quote for this product
Voltage
Cable entries
Stopping plug/adaptor material
Equipment tag
Product version
Product option
Enclosure colour
Part Number:
D2xS1
Request Price or enquire about this product
Enquire about
Alarm Horn Sounder

Description

The corrosion proof, marine grade aluminium die cast enclosure is chromated and powder coated providing resilience in the harshest of environments. One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2. UL, cUL & ULC approved 24Vdc version for public mode fire alarm use.

Downloads

Datasheet Datasheet.pdf
Installation Manual D189-01-001-IS_Issue_2__D2xS1_.pdf
IECEx certificate IECEx_ULD_14.0004X_005_D2x.pdf
ATEX certificate DEMKO_14_ATEX_4786493904X_Rev5_D2x.pdf
UL certificate of compliance UL_CoC_-_20140624-E230764_Vol.1_Sec.2_D2xS1_D2xC1.pdf
CSFM Listing CSFM_Listing_2279-0503_D2xS_2023.pdf
UKCA Certificate UL21UKEX2131X_Rev._0_D2x.pdf
Russian Ex certificate C_RU_C-GB.71..00273_20.pdf
Declaration of Conformity DC-061_Issue_J_D2x.pdf
Declaration of Conformity UKCA DC-102_Issue_A_D2x_UKCA.pdf
2D drawing (PDF) D189-05-001_Issue_A.pdf
2D drawing (DWG) D189-05-001_Issue_A.dwg
3D drawing (STEP) D189-05-001-3D_Issue_1.STEP
Wiring Schematic D189-06-001_Issue_A.pdf
Nameplate Drawing D189-09-001_Issue_1.pdf
Hi-res product image 1 (TIFF) 1-32-025_D2xS1_G1.tif
Hi-res product image 2 (TIFF) 1-32-025_D2xS1_R1.tif
Hi-res product image 3 (TIFF) 1-32-025_D2xS1_G2.tif
Pipe Mount Drawing (PDF) D217-05-041_Issue_B_D2xS1.pdf

Features

  • High output, up to 116dB(A)
  • 4 remotely selectable alarm stages/channels
  • Choice of 64 alarm tone frequencies
  • Automatic synchronisation on multi-sounder system
  • UL464 Fire Alarm
  • CAN/ULC-S525 Fire Alarm
  • Dual cable entries
  • Supplied with haz loc rated stopping plugs/adaptors

Specification

Maximum output: 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
Nominal output: 112dB(A) @ 1m +/- 3dB – Tone 2 [103dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A) [Tone 2]
Effective range: 125m/410ft @ 1KHz
Synchronisation: Automatic synchronisation
Voltages DC: 24V dc (10-30V dc);
48V dc (38-58V dc
Voltages AC: 115V ac 50/60Hz;
230V ac 50/60Hz
Stage switching: DC units: negative or positive
AC units: common supply line
Ingress protection: EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material: Marine grade aluminium Al Si12 Cu
Enclosure colour: Red or Grey, custom colours available on request
Cable entries: 2 x M20 x 1.5mm threaded gland entries
Adaptors available to 1/2"NPT, 3/4"NPT and M25
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Grounding stud: M5
Operating temp: -40 to +70°C [-40° to +158°F] – Class I Div 2
-40 to +50°C [-40° to +122°F] – All other markings
Relative humidity: 95%
Weight: DC: 2.48kg/4.96Ibs AC:2.73kg/5.46lbs

Current Consumption

Nominal Voltage: In rush: Voltage range: Nominal operating< current:
24V dc 1800mA <9.0ms 10-30V dc 313mA [at nominal voltage]
48V dc 38-58V dc 181mA [at nominal voltage]
115V ac 50/60Hz +/-10% 90mA
230V ac 50/60Hz +/-10% 52mA

Part Codes

Part Code: Identifier: Description:
Product type: D2xS1 Haz Loc alarm horn sounder
Voltage: DC024
DC048
AC115
AC230		 24V dc – UL/cUL Fire Alarm
48V dc
115V ac
230V ac
Cable Entry Type:[e] A
B
C
D
E
F
G		 2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Stopping plug/
adaptor material: [m]		 N
S		 Nickel Plated
Stainless Steel
Equipment tag: [s] 1
3
5		 No equip. tag
With equip. tag
With equip. tag and duty label
Product version: [v] A UL, cUL, ULC, IECEx, ATEX, CSFM, Ex EAC
Product option:
[o]		 1
T
X		 Standard product
Tropicalisation
Custom configuration – contact E2S
Enclosure colour: [x] R
G
S		 Red
Grey
Special colour – contact E2S
Accessories:
SP65-0001-A4
SP65-0003-A4		 Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • UL File ref: E230764
  • IECEx cert: IECEx ULD 14.0004X
  • ATEX cert: DEMKO 14 ATEX 4786493904X
  • CSFM listing: 7136-2279:0503
  • Ex EAC certified: EAC RU C GB.AA71.B.00273/20

Assemblies

The D2xS1 type alarm horn sounder is available as an assembly with D2x type Xenon strobe or LED beacons with or without a D2xJ1 junction box. Contact E2S for further information.

Coding

  • NEC / CEC:
    Class I Div 2 ABCD T3C Ta -40°C to +70°C
    Class I Div 2 ABCD T4 Ta -40°C to +65°C, T4A Ta -40°C to +50°C
    Class II Div 2 FG T5 Ta -40°C to +50°C, T6 Ta -40°C to +45°C
    Class III Div 1&2 Ta -40°C to +50°C
  • NEC:
    Class I, Zone 2 AEx ec IIC T4 Gc Ta -40ºC to +50°C
    Zone 22 AEx tc IIIC T90°C Dc Ta -40ºC to +50°C
  • CEC:
    Class I Zone 2 Ex ec IIC T4 Gc X Ta -40ºC to +50°C
    Zone 22 Ex tc IIIC T90°C Dc Ta -40ºC to +50°C
  • IECEx & ATEX:
    II 3G Ex ec IIC T4 Gc Ta -40ºC to +50ºC
    II 3D Ex tc IIIC T90ºC Dc Ta -40ºC to +50ºC
    See product manual for full voltage specific coding.

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3 Stage 4
T 1 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000 Continuous – PFEER Toxic Gas T 3 T 2 T 44
T 2 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500 @ 1Hz Sweeping – DIN / PFEER P.T.A.P. T 1 T 3 T 44
T 3 /system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV 1000 @ 0.5Hz (1s on, 1s off) Intermittent – PFEER Gen. Alarm T 1 T 2 T 44
T 4 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s – NF C 48-265 T 44 T 24 T 1
T 5 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544(100mS)/440 (400mS) – NF S 32-001 T 52 T 19 T 1
T 6 /system/1/assets/files/000/000/947/947/8f040484a/original/TF053.wav 1500/500 – (0.5s on , 0.5s off) x3 + 1s gap – AS4428 T 7 T 44 T 1
T 7 /system/1/assets/files/000/000/944/944/890010fd0/original/TF054.wav 500-1500Hz Sweeping 2 sec on 1 sec off – AS4428 T 6 T 44 T 1
T 8 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) – NEN 2575 T 44 T 24 T 35
T 9 /system/1/assets/files/000/000/953/953/5deedc543/original/TF055.wav 1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a T 18 T 34 T 1
T 10 /system/1/assets/files/000/000/952/952/3a041fde3/original/TF056.wav 1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a T 21 T 34 T 1
T 11 /system/1/assets/files/000/000/946/946/761de34c6/original/TF057.wav 420(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal T 44 T 1 T 8
T 12 /system/1/assets/files/000/000/945/945/689d9405a/original/TF058.wav 1000(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal T 44 T 1 T 8
T 13 /system/1/assets/files/000/000/950/950/2d337d14e/original/TF059.wav 422/775 – (0.85 on, 0.5 off) x3 + 1s gap – NFPA Temporal T 44 T 1 T 8
T 14 /system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV 1000/2000 @ 1Hz – Singapore T 23 T 3 T 35
T 15 /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV 300 Continuous T 44 T 24 T 35
T 16 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV 440 Continuous T 44 T 24 T 35
T 17 /system/1/assets/files/000/000/948/948/c697b364a/original/TF060.wav 470 Continuous T 44 T 24 T 35
T 18 /system/1/assets/files/000/000/949/949/7e429e658/original/TF061.wav 500 Continuous – IMO code 2 (Low) T 44 T 24 T 35
T 19 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV 554 Continuous T 64 T 24 T 35
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV 660 Continuous T 44 T 24 T 35
T 21 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV 800 Continuous – IMO code 2 (High) T 44 T 24 T 35
T 22 /system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV 1200 Continuous T 44 T 24 T 35
T 23 /system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV 2000 Continuous T 15 T 3 T 35
T 24 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV 2400 Continuous T 48 T 20 T 35
T 25 /system/1/assets/files/000/000/951/951/d9ce2b2c6/original/TF062.wav 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent T 1 T 44 T 8
T 26 /system/1/assets/files/000/000/954/954/b703d99f1/original/TF063.wav 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent T 1 T 44 T 8
T 27 /system/1/assets/files/000/000/955/955/0f602886a/original/TF064.wav 470 @ 5Hz (0.10s on, 0.10s off) Intermittent T 1 T 44 T 8
T 28 /system/1/assets/files/000/000/956/956/dbb5f64db/original/TF065.wav 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent T 44 T 24 T 8
T 29 /system/1/assets/files/000/000/957/957/7bd3d8c1c/original/TF066.wav 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent T 1 T 44 T 8
T 30 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent T 44 T 24 T 8
T 31 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent T 30 T 24 T 8
T 32 /system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV 745 @ 1Hz (0.50s on, 0.50s off) Intermittent T 44 T 24 T 8
T 33 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV 800 (0.25s on, 1.00s off) Intermittent T 53 T 24 T 8
T 34 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800 @ 2Hz (0.25s on, 0.25s off) – IMO code 3.a (High) T 56 T 24 T 8
T 35 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent T 44 T 24 T 8
T 36 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent T 21 T 24 T 8
T 37 /system/1/assets/files/000/000/958/958/a90e62da4/original/TF067.wav 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent T 53 T 24 T 8
T 38 /system/1/assets/files/000/000/959/959/f34b52faa/original/TF068.wav 363/518 @ 1Hz (0.50s / 0.50s) Alternating T 1 T 8 T 19
T 39 /system/1/assets/files/000/000/960/960/368703340/original/TF069.wav 450/500 @ 2Hz (0.25s / 0.25s) Alternating T 1 T 8 T 19
T 40 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV 554/440 @ 1Hz (0.50s / 0.50s) Alternating T 44 T 24 T 19
T 41 /system/1/assets/files/000/000/961/961/be2680966/original/TF070.wav 554/440 @ 0.65Hz (0.76s / 0.76s) Alternating T 1 T 8 T 19
T 42 /system/1/assets/files/000/000/962/962/314fe8a1b/original/TF071.wav 561/760 @ 0.83Hz (0.60s / 0.60s) Alternating T 1 T 8 T 19
T 43 /system/1/assets/files/000/000/963/963/5f6deb8a1/original/TF072.wav 780/600 @ 0.96Hz (0.52s / 0.52s) Alternating T 1 T 8 T 19
T 44 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000 @ 2Hz (0.25s / 0.25s) Alternating T 5 T 24 T 19
T 45 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 970/800 @ 2Hz (0.25s / 0.25s) Alternating T 1 T 8 T 19
T 46 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV 800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating T 53 T 24 T 19
T 47 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV 2400/2900 @ 2Hz (0.25s / 0.25s) Alternating T 57 T 24 T 19
T 48 /system/1/assets/files/000/000/965/965/e3d76c24c/original/TF073.wav 500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping T 44 T 24 T 12
T 49 /system/1/assets/files/000/000/964/964/4e1cd3f7f/original/TF074.wav 560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping T 44 T 24 T 12
T 50 /system/1/assets/files/000/000/966/966/a8e5f4440/original/TF075.wav 560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping T 44 T 24 T 12
T 51 /system/1/assets/files/000/000/969/969/5734194b1/original/TF076.wav 600/1250 @ 0.125Hz (4s / 4s) Sweeping T 44 T 24 T 12
T 52 /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV 660/1200 @ 1Hz (0.50s / 0.50s) Sweeping T 64 T 24 T 12
T 53 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV 800/1000 @ 1Hz (0.50s / 0.50s) Sweeping T 56 T 24 T 12
T 54 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000 @ 7Hz (0.07s / 0.07s) Sweeping T 57 T 24 T 12
T 55 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV 800/1000 @ 50Hz (0.01s / 0.01s) Sweeping T 54 T 24 T 12
T 56 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV 2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping T 57 T 24 T 12
T 57 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV 2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping T 47 T 24 T 12
T 58 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping T 54 T 24 T 12
T 59 /system/1/assets/files/000/000/967/967/2e92dbc46/original/TF077.wav 2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping T 44 T 24 T 12
T 60 /system/1/assets/files/000/000/968/968/5dfcb9aea/original/TF078.wav 2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping T 44 T 24 T 12
T 61 /system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV 800Hz Motor Siren T 44 T 24 T 12
T 62 /system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV 1200Hz Motor Siren T 44 T 24 T 12
T 63 /system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV 2400Hz Motor Siren T 44 T 24 T 12
T 64 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Simulated Bell T 44 T 21 T 12
Country specific or custom tone configurations and alarm frequencies are available upon request.
