BExCS110-05 Explosion Proof Alarm & Strobe 1-23-010

Product image
Product Image
Product Image

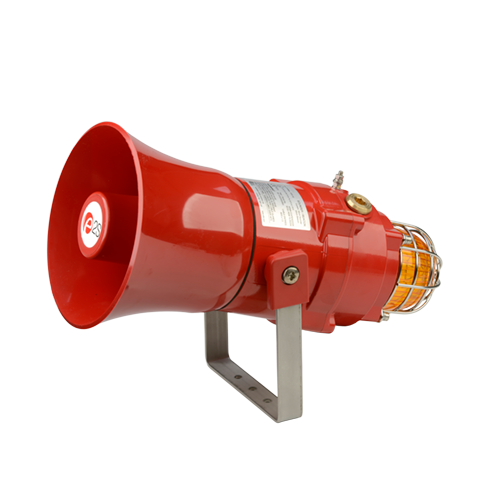

The flameproof BExCS110-05 combination alarm horn sounders and Xenon strobe beacons are suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
Request a quote for this product
Type
Voltage
Cable entries
Stopping plug/adaptor material
Bracket/Guard material
Product version
Enclosure colour
Lens colour
Part Number:
BExCS11005
Request Price or enquire about this product
Enquire about
Explosion Proof Alarm & Strobe

Description

Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. Alarm horn & Xenon beacon may be connected from a single power supply for simultaneous operation or from separate supplies for independent operation. The BEx explosion proof Ex d range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have dual cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Downloads

Datasheet Datasheet.pdf
Installation Manual D210-01-601-IS_Issue_1_BExCS110-05.pdf
Installation Manual D210-01-601-IS_Issue_2_BExCS110-05.pdf
Installation Manual - Russian D210-00-601-IS-RUS_Issue_7_BExCS110-05D.pdf
INMETRO Installation Manual IS2441-P-IEx_Issue_A.pdf
IECEx certificate IECEx_KEM_10.0025X_Issue_4_BExCS.pdf
ATEX certificate KEMA_01ATEX2223X_Issue_6_BExCS.pdf
UKCA Certificate UL22UKEX2639X_Rev_0_BExCS.pdf
INMETRO certificate IEx16.0034X_R2_BExCS.pdf
Ex EAC TR CU 012/2011 Certificate RU_-GB.65..01252_21.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00195.278.pdf
CCOE PESO CCOE_P471505_BExCS_110-05_BExCS_110-L2.pdf
Declaration of Conformity DC-001_Issue_O_BExS__BExL.pdf
SIL1 Certificate T1001_1_BExCS110_SIL1.pdf
Declaration of Conformity UKCA DC-106_Issue_A_BExCS_UKCA.pdf
2D drawing (PDF) D210-05-601_Issue_2.pdf
2D drawing (DWG) D210-05-601_Issue_2.dwg
3D drawing (STEP) D210-05-601-3D_Issue_A.STEP
Wiring Schematic DC voltage D210-06-601_Issue_2_BExCS110-05D_DC.pdf
Wiring Schematic AC voltage D210-06-605_Issue_1_BExCS110-05D_AC.pdf
Nameplate Drawing D210-09-601_Issue_1_BExCS110-05D-P.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf
Pole Mount & Sun Shade Drawing D217-05-601_Issue_2__BExCS110_F_.pdf

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Automatic synchronisation on multi-beacon & sounder systems.
  • Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
  • Xenon tubes mechanically secured against shock & vibration
  • Very large termination area.
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 120 candela effective light intensity.
  • UV stable PC, field replaceable, colour lens filters.
  • ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages.

Specification

Alarm Horn Sounder:
Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 110dB(A); Min. 72dB(A) – Tone 2
Effective range: 100m/328ft @ 1KHz
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Stage switching: Negative or positive
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Eff. Intensity: 250 cd – calculated from energy (J)
Peak Candela: 39,463 cd* – measured ref. to I.E.S.
Eff. Intensity: 120 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life : Emissions are reduced to 70% after 5 million flashes
General:
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated
Horn material: High impact UL94 V0 & 5VA FR ABS (Red)
Cable entries: Dual M20 ISO (one stopping plug included)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs
SPL data +/-3dB(A), Candela with clear lens – at optimum voltage

Current Consumption

Current consumption: Alarm Sounder Xenon Beacon
Version: Voltage: Current: Voltage: Current:
12V dc +/-25% 195mA 10-14V 750mA
24V dc +/-25% 265mA 20-28V 300mA
48V dc +/-25% 130mA 42-54V 180mA
115V ac 50/60Hz +/-10% 110mA +/-10% 140mA
230V ac 50/60Hz +/-10% 56mA +/-10% 55mA

Part Codes

Part Code: Identifier: Description:
Product type: BExCS11005 Explosion proof Alarm Horn Sounder & 5J Xenon Beacon
Type: DPF Ex d, UV stable PC Colour Lens, Flare Horn
Voltage: DC012
DC024
DC048
AC115
AC230
12V dc
24V dc
48V dc
115V ac
240V ac
Cable entries:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Stopping plug/
adaptor material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/Guard matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag
Product version: [v] A1
P1
T1
Default – IECEx, ATEX, Ex EAC & INMETRO
Stage programmable – IECEx, ATEX, Ex EAC & INMETRO
Tropicalised – IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: [x] R
S
Red
Special – contact E2S
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • IECEx Certificate: KEM 10.0025X
  • ATEX Certificate: KEMA 01ATEX2223X
  • TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
  • INMETRO certificate: 16-IEx-0034
  • PESO CCOE certified: P471505
  • UKCA certificate: UL22UKEX2639X

Coding

  • II 2G Ex db IIB T5 Gb Ta. -50°C to +40°C
  • II 2G Ex db IIB T4 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T110°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T125°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor

Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV Continuous 1000Hz Toxic Gas Alarm T 31 T 11
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV Alternating 800/1000Hz at 0.25s intervals T 17 T 5
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV Slow Whoop 500/1200Hz at 0.3Hz with 0.5s gap repeated T 2 T 5
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV Sweeping 800/1000 at 1Hz T 6 T 5
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV Continuous at 2400Hz T 3 T 27
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV Sweeping 2400/2900Hz at 7Hz T 7 T 5
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV Sweeping 2400/2900Hz at 1Hz T 10 T 5
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV Siren 500/1200/500Hz at 0.3Hz T 2 T 5
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV Sawtooth 1200/500Hz at 1Hz T 15 T 2
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV Alternating 2400/2900Hz at 2Hz T 7 T 5
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV Intermittent 1000Hz at 0.5Hz General alarm T 31 T 1
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV Alternating 800/1000Hz at 0.875Hz T 4 T 5
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV Intermittent 2400Hz at 1Hz T 15 T 5
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV Intermittent 800Hz 0.25s on 1s off T 4 T 5
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV Continuous at 800Hz T 2 T 5
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV Intermittent 660Hz 150mS on, 150mS off T 18 T 5
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV Alternating 544Hz (100mS)/440Hz(400mS) T 2 T 27
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV Intermittent 660Hz 1.8s on, 1.8s off T 2 T 5
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1400Hz to 1600Hz sweep up over 1s -1600Hz to 1400Hz sweep down over 0.5s T 2 T 5
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV Continuous 660Hz T 2 T 5
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV Alternating 554/440Hz at 1Hz T 2 T 5
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV Intermittent 554Hz at 0.875Hz T 2 T 5
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz pulsing at 2Hz T 6 T 5
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV Sweeping 800/1000Hz at 50Hz T 29 T 5
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV Sweeping 2400/2900Hz at 50Hz T 29 T 5
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Simulated bell sound T 2 T 1
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz T 26 T 5
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV Continuous 440Hz T 2 T 5
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV Sweeping 800/1000Hz at 7Hz T 7 T 5
T 30 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz repeating 0.625s on, 0.625s off Australian alert signal T 32 T 5
T 31 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz at 1 Hz Prepare to Abandon Platform T 11 T 1
T 32 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV Sweeping 500/1200Hz 3.75s on, 0.25s off 15Hz T 26 T 1
Country specific or custom tone configurations and alarm frequencies are available upon request.
