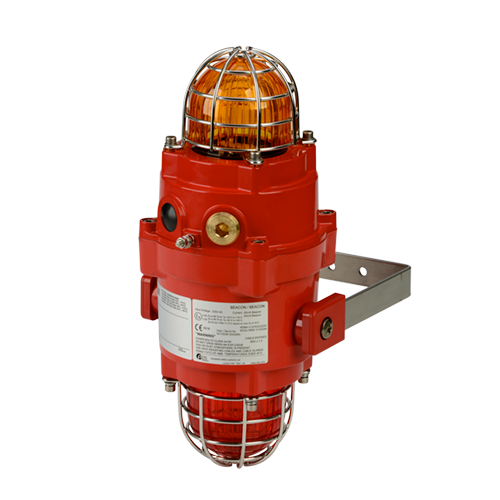

BExCBG05-05 Explosion Proof Dual Xenon Beacon 5 Joule 1-21-140

Product image
Product Image
Product Image
The flameproof BExCBG05-05 dual Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX and Ex EAC standards.
Request a quote for this product
Type
Voltage
Cable Entry Type
Adaptor/Stopping plug material
Bracket & Guard
Version
Enclosure Color
Lens Color
Part Number:
BExCBG0505
Request Price or enquire about this product
Enquire about
Explosion Proof Dual Xenon Beacon 5 Joule

Description

The BExCBG05-05D dual 5 Joule beacons robust construction enables installation in the harshest of environments. The beacons may be connected from a single supply for simultaneous operation or from separate supplies for independent operation. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.

The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Downloads

Datasheet Datasheet.pdf
Ex d & Ex tD Gas & Dust installation D210-00-701-IS_Issue_2__BExCBG0505D-P_.pdf
IECEx certificate IECEx_KEM_10.0024X_Issue_3_BExCBG.pdf
ATEX certificate KEMA_01ATEX2222X_Issue_5_BExCBG.pdf
Russian Ex certificate __RU_C_GB.71.B.00109.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register RMRS_E2S_Ex_14.02757.315___30.06.2019.pdf
Declaration of Conformity DC-006_Issue_H_BExCBG.pdf
2D drawing (PDF) SK0117_Issue_B.pdf
2D drawing (DWG) SK0117_Issue_B.dwg

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Automatic synchronisation on multi-beacon system.
  • Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
  • Xenon tubes mechanically secured against shock & vibration
  • Glass lens & Stainless Steel guard
  • Very large termination area.
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 120+120 candela effective light intensity.
  • UV stable PC, field replaceable, colour lens filters.

Specification

Energy: 5 Joules x 2 (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd x2 – calculated from energy (J)
Eff. Intensity cd: 250 cd x2 – calculated from energy (J)
Peak Candela: 39,463 cd* x2 – measured ref. to I.E.S.
Eff. Intensity cd: 120 cd* x2 – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: RAL3000 Red
(others available on request)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Tube life: Emissions are reduced to 70% after 8 million flashes
Weight: DC: 4.00kg/8.8Ibs AC: 4.35kg/9.57Ibs
*All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: Current (per beacon):
12V dc 10-14V dc 750mA
24V dc 20-28V dc 300mA
48V dc 42-54V dc 180mA
115V ac 50Hz/60Hz +/-10% 140mA
230V ac 50Hz/60Hz +/-10% 55mA

Part Codes

Version: Part code:
Product type: BExCBG0505 Explosion proof Dual 5J Xenon Beacon
Type: DP Ex d, UV stable PC Colour Lenses
Voltage: DC024
AC115
AC230
24V dc
115V ac
240V ac
Cable Entry Type:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/guard matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag
Product version: [v] A1 Default – IECEx, ATEX
Enclosure colour: [x] R
S
Red RAL3000
Special – contact E2S
1st Xenon lens colour: [y]

2nd Xenon lens colour: [y]
A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow

Approvals

  • IECEx KEM 10.0024X
    IEC 60079-0 : 2011
    IEC 60079-1 : 2007-4
    IEC 60079-31 : 2013
  • ATEX KEMA 00ATEX2222X
    EN 60079-0 : 2012 + A11
    EN 60079-1 : 2007
    EN 60079-31 : 2014
  • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109

Assemblies

Assemblies:
The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.

Coding

  • II 2G Ex d IIB T4 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T115°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T130°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor

Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93
