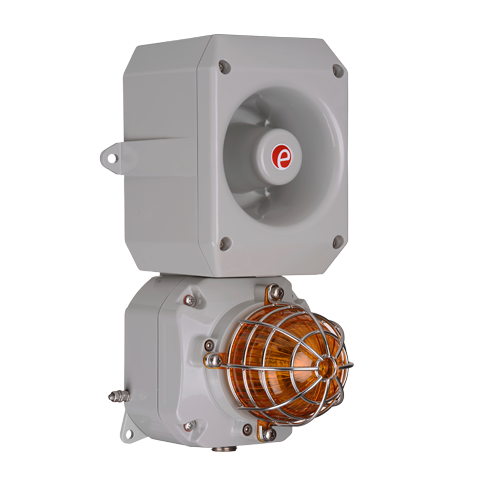

D2xC2LD2 Haz Loc Alarm Horn & LED Beacon 1-34-045

Description

The D2xC2LD2 utilises an array of high power Cree® LED’s, orientated to optimise visibility in any direction. The beacon can be configured as a steady light for status indicator use with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a effective output of up to 180 candela, may be used for warning applications. The high output alarm horn features 64 tones and DC voltage versions feature remotely selectable stages enabling multiple warnings to be signalled from one device. The 24Vdc version is approved for private mode fire alarm use.

Downloads

Datasheet	Datasheet.pdf
Installation Manual	D211-01-611-IS_Issue_2__D2xC2LD2_.pdf
Installation Manual - Russia	D211-00-611-IS-SC-RUS_Issue_E__D2xC2LD2_.pdf
IECEx certificate	IECEx_ULD_14.0004X_007_D2x.pdf
ATEX certificate	DEMKO_14_ATEX_4786493904X_Rev7_D2x.pdf
UL certificate of compliance	UL_CoC_-_20171013-E230764_Vol.1_Sec.4_D2xC2.pdf
CSFM Listing	CSFM_Listing_2279-0501_D2xC2_2024.pdf
UKCA Certificate	UL21UKEX2131X_Rev._1_D2x.pdf
Russian Ex certificate	C_RU_C-GB.71..00273_20.pdf
ECAS Ex Approval	ECAS_23-12-94531_E23-12-097313_NB0007_D2x.pdf
Declaration of Conformity	DC-061_Issue_K_D2x.pdf
Declaration of Conformity UKCA	DC-102_Issue_B_D2x_UKCA.pdf
2D drawing (PDF)	D211-05-601_Issue_3.pdf
2D drawing (DWG)	D211-05-601_Issue_2.DWG
3D drawing (STEP)	D211-05-601-3D_Issue_A.STEP
Wiring Schematic	D211-06-611_Issue_2.pdf
Nameplate Drawing	D211-09-611_Issue_1.pdf
Equipment Tag Drawing	D254-00-131_Issue_1.pdf
Duty Label Drawing	D254-00-051_Issue_1.pdf
Hi-res product image 1 (TIFF)	1-34-045_D2xC2LD2-GAa.tif
Hi-res product image 2 (TIFF)	1-34-045_D2xC2LD2-RRa.tif
Hi-res product image 3 (TIFF)	1-34-070_D2xC2X05-GRa.tif

Features

UL464/UL1638 Private mode fire use
CAN/ULC-S525 Fire Alarm
UL464/UL1638 General signaling
Auto-synchronised – audible and visual
64 alarm tones, 4 remotely selectable alarm stages/channels
Five flash rates: 1Hz, 1.3Hz, 2Hz, double and triple flash.
Two steady mode intensities for status indication
Marine grade aluminium enclosure Type 4/4X/3R/13, IP66
High impact resistant Borosilicate glass lens
Field changeable lens colour filter
Duplicate, pluggable cable terminations, supervisory diode
Dual cable entries
Supplied with haz loc rated stopping plugs/adaptors

Specification

Alarm Horn Sounder:
Maximum output:	116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
Nominal output:	112dB(A) @ 1m +/- 3dB – Tone 2 [103dB(A) @ 10ft/3m]
No. of tones:	64 (UKOOA / PFEER compliant)
No. of stages:	4
Volume control:	Adjustable -12dB(A) [Tone 2]
Effective range:	125m/410ft @ 1KHz
Synchronisation:	Automatic synchronisation
LED Beacon/Light:
Source:	Array of 4 x High Power Cree® LED’s
Eff. Intensity cd:	73.4 cd UL1638 Private mode fire
Eff. Intensity cd:	180 cd UL1638 General signaling
Peak Intensity cd:	300,000 cd
Eff. Intensity cd:	87 cd High power steady
Lens colours:	Amber, Blue, Clear, Green, Magenta, Red & Yellow
Synchronisation:	Synchronised 1Hz, 1.5Hz and 2Hz flash rates
General:
Voltages DC:	24V dc, 48V dc
In rush:	2.1A for <10ms
Voltages AC:	115Vac, 230Vac
Ingress protection:	IP rating per EN60529:IP66 Type rating per UL50E/NEMA250:4/4X/3R/13
Enclosure material:	Marine grade LM6 aluminum alloy
Enclosure colour:	Red or Grey, custom colours available on request
Lens material:	Borosilicate glass dome with PC prismatic lens cover
Guard:	Stainless Steel dome guard as standard
Cable entries:	2 × 1/2"NPT or 2 x M20x1.5mm
Stopping plug:	Stopping plug included Optional brass, nickel plated or stainless steel
Ground/Earth stud:	M5
Terminals:	0.5 – 2.5mm² (20-14 AWG)
Line monitoring:	Blocking diode included EOL can be factory fitted
Operating temp:	-40 to +50°C [-40° to +122°F]
Storage temp:	-40 to +70°C [-40° to +158°F]
Relative humidity:	95%
MTBF DC:	84.47 years / 739,918 hours – MIL 217
Weight:	DC: 4.00kg/8.82Ibs AC:4.50kg/9.92lbs

Current Consumption

Nominal Voltage:	In rush:	Voltage range:	Flash Rate setting:	Nominal current [Beacon]:
24V dc	2100mA <9.0ms	24V dc	99.5mA	313mA
48V dc		48V dc	47.4mA	181mA
115V ac		115-120Vac 50/60Hz	68mA	89mA
230V ac		220-230Vac 50/60Hz	70mA	52mA
Current at 1Hz (60fpm) flash mode

Part Codes

Part Code:	Identifier:	Description:
Product type:	D2xC2LD2	Combination Alarm Horn & LED Beacon / Warning Light
Voltage:	AC115 AC230 DC024 DC048	115-120Vac 50/60Hz 220-230Vac 50/60Hz 24V dc 48V dc
Cable entries: [e]	A B	2 x M20x1.5 2 × 1/2” NPT
Stopping plug material: [m]	N S	Nickel plated brass Stainless Steel
Guard material & tag: [s]	1 3 5	A4 316 Stainless Steel A4 316 St/St with Equip. Tag A4 316 St/St with Equip. Tag & Duty Label
Product version: [v]	A	UL, cUL, ULC, IECEx, ATEX, CSFM, Ex EAC
Product option: [o]	1 T X	Standard product Tropicalisation Custom configuration – contact E2S
Enclosure colour: [x]	R G S	Red Grey Special colour – contact E2S
Lens colour: [y]	A, B, C G, M, R, Y	Amber, Blue, Clear Green, Magenta, Red, Yellow
Accessories:
SP65-0001-A4 SP65-0003-A4		Pole Mount Bracket Kit St/St A4 (316) Sunshade – St/St A4 (316)

Approvals

UL File ref: E230764
IECEx cert: IECEx ULD 14.0004X
ATEX cert: DEMKO 14 ATEX 4786493904X
CSFM listing: 7136-2279:0501
Ex EAC certified: EAC RU C GB.AA71.B.00273/20

Coding

NEC / CEC:
Class I Div 2 ABCD T4 Ta -40°C to +50°C
Class I Div 2 ABCD T4A Ta -40°C to +40°C
Class II Div 2 FG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C
NEC:
Class I Zone 2 AEx ec IIC Gc T4 Ta -40°C to +50°C
Zone 22 AEx tc IIIC T75°C Dc Ta -40°C to +50°C
CEC:
Class I Zone 2 Ex ec IIC Gc X T4 Ta -40°C to +50°C
Zone 22 Ex tc IIIC T75°C Dc X Ta -20°C to +50°C
IECEx & ATEX:
II 3G Ex ec IIC T4 Gc Ta -40°C to +50°C
II 3D Ex tc IIIC T75°C Dc Ta -40°C to +50°C
See product manual for full voltage specific coding.

Effective Candela lens colour factor

Amber	Blue	Clear	Green	Magenta	Red	Yellow
0.59	0.27	1.00	0.51	0.34	0.15	0.85

Multi-function patterns

Stage 1: [On board]	Stage 2: [Remote]	Stage 3: [Remote]
Steady High Power	Flashing 1Hz	Triple Strike
Steady Low Power	Flashing 1Hz	Triple Strike
Flashing 1Hz	2x Flash 2Hz	Triple Strike
Flashing 1.5Hz	Flashing 2Hz	Double Strike
Flashing 2Hz	Triple Strike	Triple Strike
Double Strike	Steady High Power	Triple Strike
Triple Strike	Flashing 2Hz	Double Strike
Note: Remote second and third stage on DC units only

Tone Table

Stage 1	WAV file	Frequency Description.	Stage 2	Stage 3	Stage 4
T 1	/system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV	1000 Continuous – PFEER Toxic Gas	T 3	T 2	T 44
T 2	/system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV	1200/500 @ 1Hz Sweeping – DIN / PFEER P.T.A.P.	T 1	T 3	T 44
T 3	/system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV	1000 @ 0.5Hz (1s on, 1s off) Intermittent – PFEER Gen. Alarm	T 1	T 2	T 44
T 4	/system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV	1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s – NF C 48-265	T 44	T 24	T 1
T 5	/system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV	544(100mS)/440 (400mS) – NF S 32-001	T 52	T 19	T 1
T 6	/system/1/assets/files/000/000/947/947/8f040484a/original/TF053.wav	1500/500 – (0.5s on , 0.5s off) x3 + 1s gap – AS4428	T 7	T 44	T 1
T 7	/system/1/assets/files/000/000/944/944/890010fd0/original/TF054.wav	500-1500Hz Sweeping 2 sec on 1 sec off – AS4428	T 6	T 44	T 1
T 8	/system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV	500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) – NEN 2575	T 44	T 24	T 35
T 9	/system/1/assets/files/000/000/953/953/5deedc543/original/TF055.wav	1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a	T 18	T 34	T 1
T 10	/system/1/assets/files/000/000/952/952/3a041fde3/original/TF056.wav	1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a	T 21	T 34	T 1
T 11	/system/1/assets/files/000/000/946/946/761de34c6/original/TF057.wav	420(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal	T 44	T 1	T 8
T 12	/system/1/assets/files/000/000/945/945/689d9405a/original/TF058.wav	1000(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal	T 44	T 1	T 8
T 13	/system/1/assets/files/000/000/950/950/2d337d14e/original/TF059.wav	422/775 – (0.85 on, 0.5 off) x3 + 1s gap – NFPA Temporal	T 44	T 1	T 8
T 14	/system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV	1000/2000 @ 1Hz – Singapore	T 23	T 3	T 35
T 15	/system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV	300 Continuous	T 44	T 24	T 35
T 16	/system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV	440 Continuous	T 44	T 24	T 35
T 17	/system/1/assets/files/000/000/948/948/c697b364a/original/TF060.wav	470 Continuous	T 44	T 24	T 35
T 18	/system/1/assets/files/000/000/949/949/7e429e658/original/TF061.wav	500 Continuous – IMO code 2 (Low)	T 44	T 24	T 35
T 19	/system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV	554 Continuous	T 64	T 24	T 35
T 20	/system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV	660 Continuous	T 44	T 24	T 35
T 21	/system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV	800 Continuous – IMO code 2 (High)	T 44	T 24	T 35
T 22	/system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV	1200 Continuous	T 44	T 24	T 35
T 23	/system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV	2000 Continuous	T 15	T 3	T 35
T 24	/system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV	2400 Continuous	T 48	T 20	T 35
T 25	/system/1/assets/files/000/000/951/951/d9ce2b2c6/original/TF062.wav	440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent	T 1	T 44	T 8
T 26	/system/1/assets/files/000/000/954/954/b703d99f1/original/TF063.wav	470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent	T 1	T 44	T 8
T 27	/system/1/assets/files/000/000/955/955/0f602886a/original/TF064.wav	470 @ 5Hz (0.10s on, 0.10s off) Intermittent	T 1	T 44	T 8
T 28	/system/1/assets/files/000/000/956/956/dbb5f64db/original/TF065.wav	544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent	T 44	T 24	T 8
T 29	/system/1/assets/files/000/000/957/957/7bd3d8c1c/original/TF066.wav	655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent	T 1	T 44	T 8
T 30	/system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV	660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent	T 44	T 24	T 8
T 31	/system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV	660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent	T 30	T 24	T 8
T 32	/system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV	745 @ 1Hz (0.50s on, 0.50s off) Intermittent	T 44	T 24	T 8
T 33	/system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV	800 (0.25s on, 1.00s off) Intermittent	T 53	T 24	T 8
T 34	/system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV	800 @ 2Hz (0.25s on, 0.25s off) – IMO code 3.a (High)	T 56	T 24	T 8
T 35	/system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV	1000 @ 1Hz (0.50s on, 0.50s off) Intermittent	T 44	T 24	T 8
T 36	/system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV	2400 @ 1Hz (0.50s on, 0.50s off) Intermittent	T 21	T 24	T 8
T 37	/system/1/assets/files/000/000/958/958/a90e62da4/original/TF067.wav	2900 @ 5Hz (0.10s on, 0.10s off) Intermittent	T 53	T 24	T 8
T 38	/system/1/assets/files/000/000/959/959/f34b52faa/original/TF068.wav	363/518 @ 1Hz (0.50s / 0.50s) Alternating	T 1	T 8	T 19
T 39	/system/1/assets/files/000/000/960/960/368703340/original/TF069.wav	450/500 @ 2Hz (0.25s / 0.25s) Alternating	T 1	T 8	T 19
T 40	/system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV	554/440 @ 1Hz (0.50s / 0.50s) Alternating	T 44	T 24	T 19
T 41	/system/1/assets/files/000/000/961/961/be2680966/original/TF070.wav	554/440 @ 0.65Hz (0.76s / 0.76s) Alternating	T 1	T 8	T 19
T 42	/system/1/assets/files/000/000/962/962/314fe8a1b/original/TF071.wav	561/760 @ 0.83Hz (0.60s / 0.60s) Alternating	T 1	T 8	T 19
T 43	/system/1/assets/files/000/000/963/963/5f6deb8a1/original/TF072.wav	780/600 @ 0.96Hz (0.52s / 0.52s) Alternating	T 1	T 8	T 19
T 44	/system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV	800/1000 @ 2Hz (0.25s / 0.25s) Alternating	T 5	T 24	T 19
T 45	/system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV	970/800 @ 2Hz (0.25s / 0.25s) Alternating	T 1	T 8	T 19
T 46	/system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV	800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating	T 53	T 24	T 19
T 47	/system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV	2400/2900 @ 2Hz (0.25s / 0.25s) Alternating	T 57	T 24	T 19
T 48	/system/1/assets/files/000/000/965/965/e3d76c24c/original/TF073.wav	500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping	T 44	T 24	T 12
T 49	/system/1/assets/files/000/000/964/964/4e1cd3f7f/original/TF074.wav	560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping	T 44	T 24	T 12
T 50	/system/1/assets/files/000/000/966/966/a8e5f4440/original/TF075.wav	560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping	T 44	T 24	T 12
T 51	/system/1/assets/files/000/000/969/969/5734194b1/original/TF076.wav	600/1250 @ 0.125Hz (4s / 4s) Sweeping	T 44	T 24	T 12
T 52	/system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV	660/1200 @ 1Hz (0.50s / 0.50s) Sweeping	T 64	T 24	T 12
T 53	/system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV	800/1000 @ 1Hz (0.50s / 0.50s) Sweeping	T 56	T 24	T 12
T 54	/system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV	800/1000 @ 7Hz (0.07s / 0.07s) Sweeping	T 57	T 24	T 12
T 55	/system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV	800/1000 @ 50Hz (0.01s / 0.01s) Sweeping	T 54	T 24	T 12
T 56	/system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV	2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping	T 57	T 24	T 12
T 57	/system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV	2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping	T 47	T 24	T 12
T 58	/system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV	2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping	T 54	T 24	T 12
T 59	/system/1/assets/files/000/000/967/967/2e92dbc46/original/TF077.wav	2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping	T 44	T 24	T 12
T 60	/system/1/assets/files/000/000/968/968/5dfcb9aea/original/TF078.wav	2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping	T 44	T 24	T 12
T 61	/system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV	800Hz Motor Siren	T 44	T 24	T 12
T 62	/system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV	1200Hz Motor Siren	T 44	T 24	T 12
T 63	/system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV	2400Hz Motor Siren	T 44	T 24	T 12
T 64	/system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV	Simulated Bell	T 44	T 21	T 12
Country specific or custom tone configurations and alarm frequencies are available upon request.
