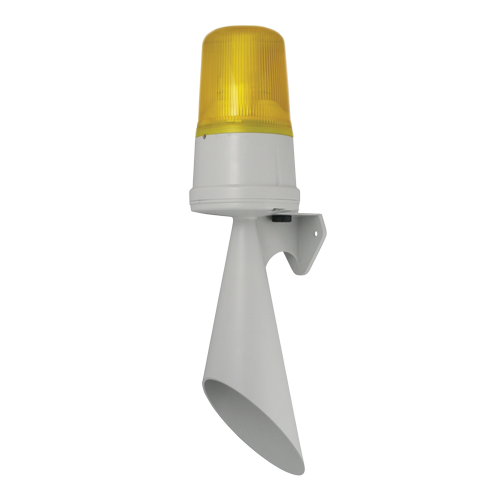

H110TX Trumpet Horn & Xenon Strobe Beacon 2-31-340

Product image
Product Image
The H110T is a very high output electronic signal horn capable of generating a traditional 'buzzer' warning tone traditionally associated with electro-mechanical signals.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
H110TX
Request Price or enquire about this product
Enquire about
Trumpet Horn & Xenon Strobe Beacon

Description

The H110TX incorporates the H110T with a 5 Joule Xenon strobe beacon. It is available in six lens colours and operating voltages from 12V dc to 230V ac.
The H110TX Xenon beacon component features an automatically synchronised flash rate of 1Hz (60 flashes per minute) as standard. The DC voltage versions also have user selectable 1.5Hz (90 flashes per minute) and double-strike flash rates. The double strike flash rate can be remotely activated via a third wire (as can alternative alarm tones on the horn sounder) enabling a audible and visual communication of a two stage alarm condition.

Downloads

Datasheet Datasheet.pdf
Installation Manual H110TX_D153-00-101-IS_Issue_1.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Fire certificate GOST-R_POCC_GB.05.H00144_Industrial.PDF
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-031_Issue_C_H100__H110.pdf
2D drawing (PDF) SK0064_Issue_B.pdf
2D drawing (DWG) SK0064_Issue_B.DWG
Hi-res product image 1 (TIFF) 2-31-340_H110TX-Y.tif
Hi-res product image 2 (TIFF) 2-31-340_H110TX-GROUP.tif
Lo-res product image 1 (JPG) 2-31-340_H110TX-Y.jpg
Lo-res product image 2 (JPG) 2-31-340_H110TX-GROUP.jpg

Features

  • Volume control.
  • Stainless steel fixings.
  • Bayonet fixing lens.
  • Anti-tamper locking screw.

Specification

Horn:
No. of tones: 3
Output: 110 dB(A) @ 1m
No. of stages: Alarm horn: 2, Xenon Beacon (DC only): 2
Double strike pattern can be remotely switched
Stage switching: DC voltage via negative
AC voltage via live supply
Beacon:
Light source: Xenon Strobe
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
DC units: Optionally 1.5Hz
& double strike
Synchronisation: 1Hz flash rate automatically synchronised
Peak Candela: 500,000 cd – calculated from energy (J)
Effective Candela: 250 cd – calculated from energy (J)
Peak Candela: 49,778 cd* – measured ref. to I.E.S.
Effective Candela: 125 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green,
Red & Yellow
Lens type: Prismatic (standard) or plain
General:
Dimensions: 462.9 × 135mm
Mounting: Surface mount
Entries: 1 × 5-7mm push through grommet
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Lens material: High impact PC (UL94V0 f1)
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 638g/1.40Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
12V dc/ac H110TX012G/*
24V dc/ac H110TX024G/*
48V dc/ac H110TX048G/*
115V ac H110TX115G/*
230V ac H110TX230G/*
* = Lens colour: A: Amber, B: Blue, C: Clear,
G: Green, R: Red, Y: Yellow

Approvals

  • GOST-R approved: POCC GB-JB05-H00144.

Beacon current consumption

Version: Voltage: Current:
12V dc/ac 12V dc 500mA
12V dc/ac 12V ac 50Hz 600mA
24V dc/ac 24V dc 250mA
24V dc/ac 24V ac 50Hz 300mA
48V dc/ac 48V dc 175mA
48V dc/ac 48V ac 50Hz 250mA
115V ac 115V ac 50/60Hz 70mA
230V ac 230V ac 50/60Hz 35mA

Horn current consumption

Version: Voltage: Current:
12V dc/ac 12V dc 52mA
12V dc/ac 12V ac 50Hz 115mA
24V dc/ac 24V dc 105mA
24V dc/ac 24V ac 50Hz 215mA
48V dc/ac 48V dc 42mA
48V dc/ac 48V ac 50Hz 68mA
115V ac 115V ac 50/60Hz 36mA
230V ac 230V ac 50/60Hz 18mA

Tone Table

Stage 1 *WAV file* Frequency Description. Stg 2
T 1 /system/1/assets/files/000/000/424/424/33c1c60f3/original/TF052.WAV Electro-mechanical diaphragm horn sound T 2
T 2 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 1
T 3 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
