BExCP3A-BG/BExCP3B-BG Break Glass Call Point 1-24-070

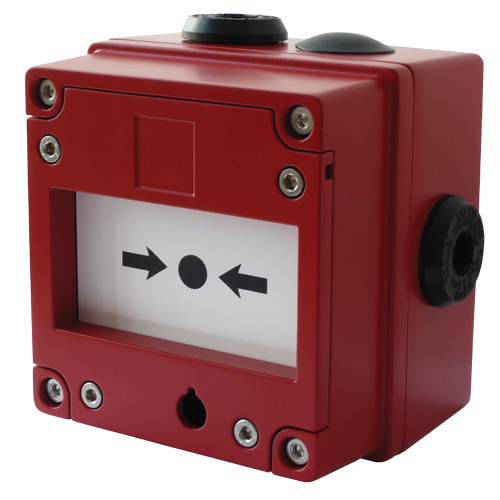

Product image
The SIL 2 compliant BExCP3A-BG and BExCP3B-BG break glass manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems.
Request a quote for this product
Type
Terminals
Lift Flap
Duty/Tag label
Enclosure Color
System Voltage (B type only)
E.O.L module (B type only)
Series module (B type only)
Part Number:
BExCP3
Request Price or enquire about this product
Enquire about
Break Glass Call Point

Description

Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards. The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromate and powder coat finish.

Downloads

Datasheet Datasheet.pdf
A version installation D150-00-001-IS_2__BExCP3A-BG_.pdf
B version installation D150-00-051-IS_4__BExCP3B-BG_.pdf
IECEx certificate IECEx_SIR_09.0121X_Issue_4_BExCP3__GNExCP6.pdf
ATEX certificate Sira_09ATEX3286X_Issue_4_BExCP3__GNExCP6.pdf
INMETRO certificate E2S_CoC_IEx_10.0011X_R4_17062019.pdf
Russian Ex certificate __RU_C-GB.MH04.B.00048.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Declaration of Conformity DC-007_Issue_I_BExCP3.pdf
SIL2 Certificate T883-118_SIL2_MCP.pdf
2D drawing (PDF) SK0130_Issue_C.pdf
2D drawing (DWG) SK0130_Issue_C.DWG
3D drawing (STEP) SK0130-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 1-24-070_BExCP3-BG.tif
Lo-res product image 1 (JPG) 1-24-070_BExCP3-BG.jpg
Pipe Mount Drawing (PDF) D217-05-321_Issue_B_GNExCP6.pdf

Specification

BExCP3A-BG: II 2G Ex d e IIC T6 Gb
II 2D Ex t IIIC T60°C Db
IP66
BExCP3B-BG: II 2G Ex d e mb IIC T4 Gb
II 2D Ex t IIIC T70°C Db
IP66
Ambient: Ta = -40°C to +55°C [-40° to +131°F]
(+50°C for BExCP3B)
Ingress protection: IP66
Enclosure material: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromated & powder coated finish: anti-corrosion.
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries.
Stopping plugs: 2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional
Terminals: 6 × 4.0mm² cables or or 8 × 2.5mm² DIN rail
Weight: 0.8Kg

Part Codes

Version: Part code: Description:
Type: BExCP3A-BG
BExCP3B-BG
A type – no end of line devices
B type – choice of end of line devices
Terminals: ST
DR
ST: Standard
DR: DIN rail (only on BExCP3B type)
Lift flap: LF
NF
Lift flap
No lift flap
Duty label: NL
DL
No duty label
Duty label required – specify contents
Colour: RD
XX
Red enclosure colour
Other enclosure colour – contact sales
Voltage: 48V
24V
12V
6V
System voltage (only required for BExCP3B type)
E.O.L.Module:
[Exxx]
ExxxR
ED1
ExxxZ
Resistor value in Ohms e.g. E470R = 470 Ohm
Diode IN4007 = ED1
Zener diode e.g. E5V1Z = 5.1V
(only required for BExCP3B type)
Series Module:
[Sxxx]
SxxxR
SD1
SxxxZ
Resistor value in Ohms e.g. S1K5R = 1.5K Ohm
Diode IN4007 = SD1
Zener diode e.g. S5V1Z = 5.1V
(only required for BExCP3B type)
Accessories: SP65-0001-A2
SP65-0001-A4
SP65-0002-A2
SP65-0002-A4
Pole Mount Bracket Kit 2" St/St A2 (304)
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A2 (304)
Sunshade – St/St A4 (316)

Approvals

  • ATEX certificate: Sira 09ATEX3286X,
    IEC 60079-0:2007 Ed 5, EN 60079-1:2004,
    EN 60079-7:2007, IEC 60079-18:2009 Ed 3,
    EN 61241-1:2004
  • IECEx certificate: IECEx SIR 09.0121X,
    IEC 60079-0:2007-10 Edition: 5,
    IEC 60079-1:2003 Edition: 5,
    IEC 60079-18:2009 Edition: 3,
    IEC 60079-7:2006-07 Edition: 4,
    IEC 61241-1:2004 Edition: 1
  • INMETRO certificate: 10-IEx-0011X
  • GOST-R certificate: POCC GB.JB05.B03365
  • SIL 2 certified to IEC 61508 (2010)
  • Complies with design requirements of EN54-11

Options

  • Alternative housing colours are available to meet specific requirements.
  • DIN rail mounted terminal blocks: 8 × 2.5mm²
  • Stainless Steel lift flap
  • Metalised Polyester “Duty” label.
  • Series and/or End of Line resistors.

Versions

Version: Voltage: Switch: Terminals: Cable entries:
BExCP3A-BG 250V ac Max.
50V dc Max.
5.0A Max.
1.0A Max.
6 × 4mm² 2 x M20 Top/Bottom
1 x M20 Left/Right
Coding: II 2G Ex d e IIC T6 Gb Ta = -40°C to +55°C
II 2D Ex t IIIC T60°C Db IP66
Version: Nom./Max.
Voltage:
Switch: Terminals: Cable entries: Min. EOL /
Series Value:­
BExCP3B-BG 48V/56V
24V/28V
12V/15V
6V/9V
56V dc Max.
Rating:
<50V: 1.0A
>50V: 0.75A
6 × 4mm² or
8 × 2.5mm²
DIN rail
2 x M20
Top/Bottom
1 x M20
Left/Right
1K8
470R
120R
47R
Coding: II 2G Ex d e mb IIC T4 Gb Ta = -40°C to +50°C
II 2D Ex t IIIC T70°C Db IP66
