D2xP1 LED/Xenon Status Lamp Assembly 1-35-010

Product image
Product Image
Product Image
The D2xP1 is an integrated stack assembly comprised of high output LED or Xenon Strobe beacons from the D2x family of globally approved Class I/II Div 2 and Zone 2/22 visual warning signals.
Request a quote for this product
Junction Box Option
Beacon 1
Beacon 1 colour
Beacon 2
Beacon 2 colour
Beacon 3
Beacon 3 colour
Beacon 4
Beacon 4 colour
Voltage
Cable entries
Stopping plug/adaptor material
Guard/Tag material
Product version
Product option
Enclosure colour
Part Number:
D2xP1
Request Price or enquire about this product
Enquire about
LED/Xenon Status Lamp Assembly

Description

The compact, close coupled assembly is ideal as a status light indicator or for applications where combined visual signals are required to provide multiple warnings. The non-sparking, D2xP1 features a preinstalled cable loom with a large termination area in the first beacon. An optional junction box can be specified if required. The innovative mounting lug connectors remove the need for a back plate on assemblies up to 5 devices. The optional stainless steel duty labels can be field orientated to allow the assembly to be mounted either horizontally or vertically. Also available as the D2xC3 and D2xC4 audible and visual alarm bars featuring the D2xS1 alarm horn sounder.

Downloads

Datasheet Datasheet.pdf
IECEx certificate IECEx_ULD_14.0004X_007_D2x.pdf
ATEX certificate DEMKO_14_ATEX_4786493904X_Rev7_D2x.pdf
UL certificate of compliance UL_CoC_-_20171013-E245313_Vol.1_Sec.2_D2xB.pdf
UKCA Certificate UL21UKEX2131X_Rev._1_D2x.pdf
Declaration of Conformity DC-113_Issue_A_D2xC3_P1.pdf
Declaration of Conformity UKCA DC-114_Issue_A_D2xC3_P1_UKCA.pdf
Install Manual 2 beacons and junction box D215-01-132-IS_Issue_2.pdf
Install Manual 2 beacons no junction box D215-01-120-IS_Issue_2.pdf
Install Manual 3 beacons and junction box D215-01-142-IS_Issue_2.pdf
Install Manual 3 beacons no junction box D215-01-130-IS_Issue_2.pdf
Install Manual 4 beacons and junction box D215-01-152-IS_Issue_2.pdf
Install Manual 4 beacons no junction box D215-01-140-IS_Issue_2.pdf
Outline PDF 2 beacons and junction box D215-05-132_Issue_2.pdf
Outline PDF 2 beacons no junction box D215-05-120_Issue_2.pdf
Outline PDF 3 beacons and junction box D215-05-142_Issue_2.pdf
Outline PDF 3 beacons no junction box D215-05-130_Issue_2.pdf
Outline PDF 4 beacons and junction box D215-05-152_Issue_2.pdf
Outline PDF 4 beacons no junction box D215-05-140_Issue_2.pdf
Outline DWG 2 beacons and junction box D215-05-132_Issue_2.DWG
Outline DWG 2 beacons no junction box D215-05-120_Issue_2.DWG
Outline DWG 3 beacons and junction box D215-05-142_Issue_2.DWG
Outline DWG 3 beacons no junction box D215-05-130_Issue_2.DWG
Outline DWG 4 beacons and junction box D215-05-152_Issue_2.DWG
Outline DWG 4 beacons no junction box D215-05-140_Issue_2.DWG
Outline STEP 2 beacons and junction box D215-05-132_Issue_1.STEP
Outline STEP 2 beacons no junction box D215-05-120_Issue_1.STEP
Outline STEP 3 beacons and junction box D215-05-142_Issue_1.STEP
Outline STEP 3 beacons no junction box D215-05-130_Issue_1.STEP
Outline STEP 4 beacons and junction box D215-05-152_Issue_1.STEP
Outline STEP 4 beacons no junction box D215-05-140_Issue_1.STEP
Wiring PDF 2 beacons and junction box D215-06-132_Issue_3.pdf
Wiring PDF 2 beacons no junction box D215-06-120_Issue_3.pdf
Wiring PDF 3 beacons and junction box D215-06-142_Issue_3.pdf
Wiring PDF 3 beacons no junction box D215-06-130_Issue_3.pdf
Wiring PDF 4 beacons and junction box D215-06-152_Issue_3.pdf
Wiring PDF 4 beacons no junction box D215-06-140_Issue_3.pdf
Equipment Tag Drawing D254-00-111_Issue_1.pdf
Duty Label Drawing Option 2 D254-00-031_Issue_1.pdf
Duty Label Drawing Option 3 D254-00-001_Issue_1.pdf
Product image 2 beacons no junction box Red D2xP1N1xGxR-R.png
Product image 2 beacons no junction box Grey D2xP1N1xGxR-G.png
Product image 2 beacons with junction box Red D2xP1J1xGxR-R.png
Product image 2 beacons with junction box Grey D2xP1J1xGxR-G.png
Product image 3 beacons no junction box Grey D2xP1N1xGxAxR-G.png

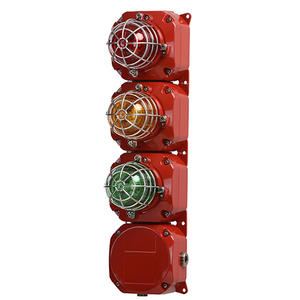

Product image 3 beacons with junction box Red D2xP1J1xGxAxR-R.png
Product image 3 beacons with junction box Grey D2xP1J1xGxAxR-G.png
Product image 4 beacons no junction box Grey D2xP1N1xGxAxBxR-G.png
Product image 4 beacons with junction box Red D2xP1J1xGxAxBxR-R.png
Product image 4 beacons with junction box Grey D2xP1J1xGxAxBxR-G.png

Features

  • Private mode fire use & General signalling UL1638
  • Globally approved to UL, cUL, ULC, IECEx and ATEX
  • Available with LED and/or Xenon Strobe beacons
  • Factory assembled with integrated cable loom
  • Available with or without junction box
  • Close coupled assembly
  • LM6 marine grade aluminium enclosure
  • Optional stainless steel duty labels
  • Vertical or horizontal mounting
  • Ingress protection Type 4/4X/3R/13, IP66
  • 316 (A4) stainless steel beacon guards
  • High impact resistant glass lenses
  • UV stable PC field replaceable lens colour filter
  • Supplied with haz loc rated stopping plugs

Specification

Beacon option: D2xB1LD2 LED Beacon
Product data: D2xB1LD2: www.e2s.com/1-31-065
Source: Array of 4 x High Power Cree® LED’s
Eff. Intensity cd: 73.4 cd UL1638 Private mode fire
Eff. Intensity cd: 180 cd UL1638 General signalling
Peak Intensity cd: 300,000 cd
Eff. Intensity cd: 87 cd High power steady
LED life: >60,000 hours
Synchronisation: Synchronised 1Hz, 1.3Hz and 2Hz flash rates
In-rush: 1.88A for 2ms @ 24V dc
Beacon option: D2xB1X10 10J Xenon Strobe Beacon
Product data: D2xB1X10: www.e2s.com/1-31-050
Energy: 10 Joules (10Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 1,000,000 cd – calculated from energy (J)
Eff. Intensity cd: 500 cd – calculated from energy (J)
Peak Candela: 101,784 cd* – measured ref. to I.E.S.
Eff. Intensity cd: 288.8 cd* – measured ref. to I.E.S.
Beacon option: D2xB1X05 5J Xenon Strobe Beacon
Product data: D2xB1X05: www.e2s.com/1-31-040
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Eff. Intensity cd: 250 cd – calculated from energy (J)
Peak Candela: 33,410 cd* – measured ref. to I.E.S.
Eff. Intensity cd: 94.78 cd* – measured ref. to I.E.S.
General info: Common component features:
Ingress protection: IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13
Enclosure material: Marine grade aluminium LM6 – copper free
Chromated & powder coated – corrosion proof
Enclosure colour: Red, Grey
Lens material: Borosilicate glass dome & PC colour filter
Lens guard: 316 (A4) Stainless Steel dome guard as standard
Stopping plugs: Brass/Nickel Plated/Stainless Steel plugs included
Ground/Earth stud: M5
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included EOL can be factory fitted
Certified temp: -40 to +50°C [-40° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist

Current Consumption

Voltage & Range: Frequency: D2xB1LD2 LED
Beacon Component
Nominal Current:
D2xB1X10 10J Xenon
Beacon Component
Nominal Current:
D2xB1X05 5J Xenon
Beacon Component
Nominal Current:
24Vdc 99.5mA 560mA 275mA
115-120Vac 50/60Hz 68mA 185mA 80mA
220-230Vac 50/60Hz 70mA 107mA 30mA

Part Codes

Part Code: Ident.: Description:
Product type: D2xP1 Status Lamp – Xenon Strobe or LED Beacons
Junction box option: N1
J1
No junction box
With D2xJ1 junction box
Beacon Type
(Add code for
each Beacon
required)
1Y
2Y
3Y
4Y
5Y
Y=Colour:

Note:
D2xB1X05 5 Joule Xenon Strobe Beacon
D2xB1X10 10 Joule Xenon Strobe Beacon
D2xB1LD2 LED Beacon
A: Amber B: Blue C: Clear G: Green
M: Magenta R: Red Y: Yellow
D2xB1LD2 with AC supply voltage only available in first beacon position with J1 Junction Box option
Voltage: DC024
AC115
AC230
24Vdc
115-120Vac 50/60Hz
220-230Vac 50/60Hz
Cable entries: [e] A
B
C
D
E
F
Note:
2 x M20x1.5
2 × 1/2” NPT
2 × 3/4" NPT – adaptors
2 x M25x1.5 – adaptors
1 × 3/4” NPT – adaptor + 1 x M20
1 x M25x1.5 – adaptor + 1 x M20
Option E & F only applicable with no j/box (N1)
Option B & C feature additional 2 × 3/4"NPT entries with junction box (J1)
Stopping plug/Adaptor material: [m] B
N
S
Brass
Nickel Plated
Stainless Steel
Guard/Tag material: [s] 1
3
5
316 St/St Guard & 316 Equipment Tag
316 St/St Guard & 316 Equip. Tag & Duty Labels
316 St/St Guard & 316 Equip. Tag & Duty Labels attached by steel wire
Product version: [v] A UL, cUL, ULC, IECEx & ATEX
Product option [o]: 1
2
W
X
Standard Wiring
Independent Wiring
Special Wiring
Custom Configuration
Enclosure colour: [x] R
G
Red
Grey

Example:
D2xP1 J1 5G 5A 5R DC024 B N 1 A 1 G
D2xP1 Stack with a D2xJ1 junction box and 3 x D2xB1LD2 LED beacons with green, amber and red lenses, 2 × 1/2" NPT entries with nickel plated brass stopping plugs and a grey enclosure

Note:
Assemblies with 115Vac or 230Vac supply voltage requiring a D2xB1LD2 LED beacon in the first position must also select the ‘J1’ junction box option.

Approvals

  • UL/cUL File ref: E245313
  • IECEx certificate: IECEx ULD 14.0004X
  • ATEX certificate: DEMKO 14 ATEX 4786493904X
  • CSFM listing: 7300-2279:0500
  • Ex EAC certified: EAC RU C GB.AA71.B.00273/20

Coding

  • NEC/CEC:
    Class I Div 2 ABCD T1/T2D/T3C Ta -40°C to +50°C (T2: +45°C)
    Class II Div 2 FG T4A/T5/T6 Ta -40°C to +50°C
    Class III Div 1&2 Ta -40°C to +50°C
  • NEC:
    Class I Zone 2 AEx ec IIC T1/T2/T4 Gc (Ta -40°C to +50°C)
    Zone 22 AEx tc IIIC 105°C Dc (Ta -40°C to +50°C)
  • CEC:
    Class I Zone 2 Ex ec IIC T1/T2/T4 Gc X (Ta -40°C to +50°C)
    Zone 22 Ex tc IIIC 105°C Dc (Ta -40°C to +50°C)
  • IECEx & ATEX:
    II 3G Ex ec IIC T1/T2/T4 Gc (Ta -40°C to +50°C)
    II 3D Ex tc IIIC 105°C Dc (Ta -40°C to +50°C)
    Coding dependent upon assembly contents, see component product details.
