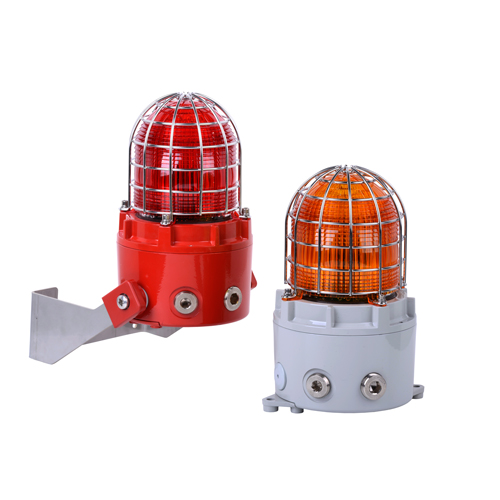

The globally approved D1xB2 family from E2S offer the most comprehensive range of solutions for UL1638 signaling in Class I/II Div 1 or Zone 1/21 explosion proof applications.
Range information: | |||
Enclosure material | Corrosion proof, marine grade, copper free LM6 aluminum, chromated and powder coated. | ||
Enclosure colour | Red (RAL3000) or Grey (RAL7038) | ||
Ingress Protection | Type 4, 4X, 13, 3R, (IP66/67) | ||
Mounting | Integrated pendant and surface mount capability. Optional ratchet adjustable stainless steel ‘U’ bracket. |
||
Cable/conduit entries | 1 × 3/4” NPT rear conduit entry 2 × 3/4” NPT side conduit entries 2 x M20 ISO side conduit/gland entries Stopping plugs included (brass, nickel plated or stainless steel) |
||
Dimensions | 252.34mm x 150.0mm (9.93” x 5.91”) |
Private mode fire candela output | Effective candela to IES | Peak candela | Joules | Light source | Auto Synch | Nominal current @ 24Vdc | In rush @ 24Vdc | DC Voltages | AC Voltages | |
D1xB2LD2 | n/a |
338 |
n/a | n/a |
LED |
Yes |
230mA |
1.22A 2ms |
24Vdc |
115Vac 230Vac |
D1xB2X21 | 215.85 |
1250.66 |
2,100,000 | 21 |
Xenon |
Yes |
1.13A |
1.5A 5ms |
24Vdc |
115Vac 230Vac |
D1xB2X15 | 98.61 |
713.71 |
1,500,000 | 15 |
Xenon |
Yes |
835mA |
990mA 5ms |
24Vdc |
115Vac 230Vac |
D1xB2X10 | 69.81 |
645.21 |
1,000,000 | 10 |
Xenon |
Yes |
605mA |
990mA 5ms |
24Vdc |
115Vac 230Vac |
D1xB2X05 | 20.44 |
156.65 |
500,000 | 5 |
Xenon |
Yes |
295mA |
920mA 5ms |
24Vdc |
115Vac 230Vac |
To discover the full D1x signal range please click here.
